4 Soft top raised

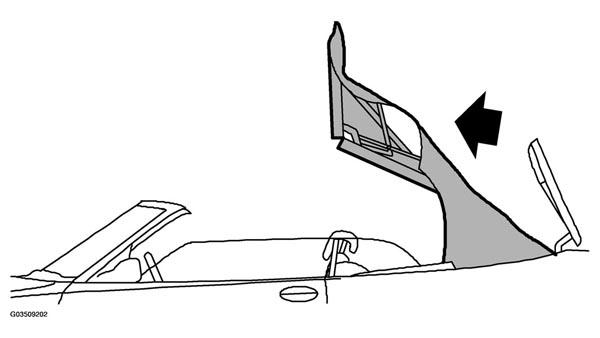

Fig 1: Identifying Soft Top Raised Position

Courtesy of SAAB-SCANIA OF AMERICA, INC.

SWITCH/MICROSWITCH CONDITION SPECIFICATIONS

Switch/Microswitch	Condition
Main cylinder, up	OFF changes to ON
Main cylinder, down	ON changes to OFF
Fifth bow cylinder, down	ON changes to OFF
Fifth bow intermediate position	OFF changes to ON

The soft top is raised and the valves assume the following conditions.

FIFTH BOW LATCH MOTOR PUMP, VALVES AND RELAY CONDITION SPECIFICATIONS

Pump, valves, relay for fifth bow latch motor	Condition
Valve 2, main cylinder up	OFF changes to ON
