3 Soft top cover raised.

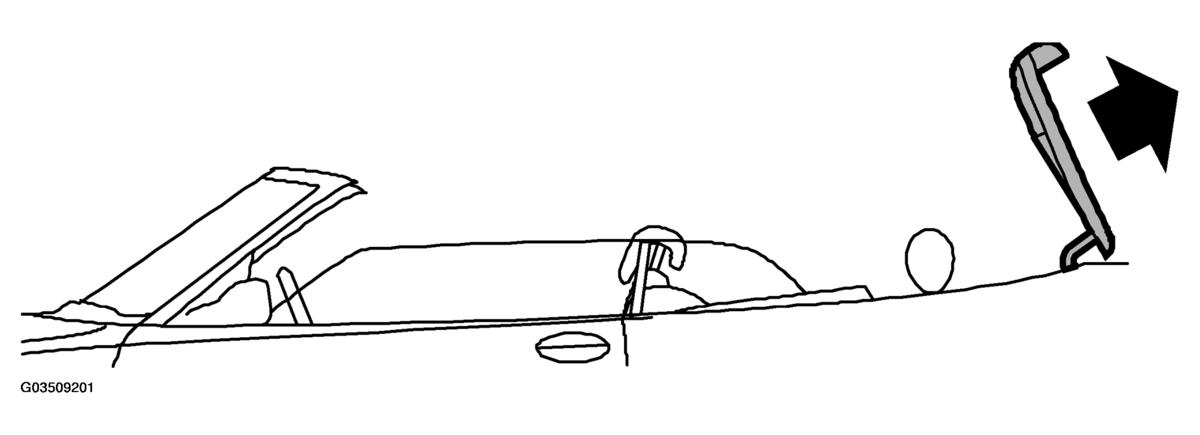

Fig 1: Identifying Soft Top Cover Raised Position
G03509201Courtesy of SAAB-SCANIA OF AMERICA, INC.
SWITCH/MICROSWITCH CONDITION SPECIFICATIONS

Switch/Microswitch Condition
Soft top cover cylinder, up OFF changes to ON

The soft top cover is raised and the pump assumes the following condition.

FIFTH BOW LATCH MOTOR PUMP, VALVES AND RELAY CONDITION SPECIFICATIONS

Pump, valves, relay for fifth bow latch motor Condition
Pump, pull ON
