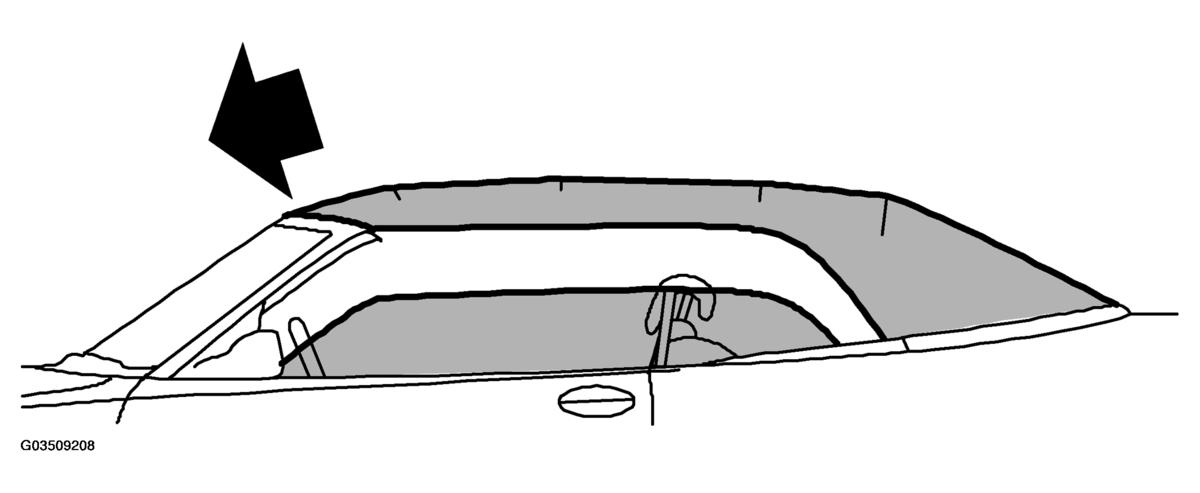

10 "Lightly locked" position and first bow locked to windscreen frame
SWITCH/MICROSWITCH CONDITION SPECIFICATIONS
| Switch/Microswitch | Condition |
|---|---|
| Windscreen frame, left | OFF changes to ON |
| Windscreen frame, right | OFF changes to ON |
The soft top is pressed to its "lightly locked" position against the windscreen frame and the latch handle is locked manually against the windscreen frame. The valves and the relay for the fifth bow latch motor assume the following conditions.
FIFTH BOW LATCH MOTOR PUMP, VALVES AND RELAY CONDITION SPECIFICATIONS
| Pump, valves, relay for fifth bow latch motor | Condition |
|---|---|
| Valve 2, main cylinder up | OFF changes to ON |
| Relay for fifth bow latch motor | LOCK changes to OFF |
| Pump, push | ON changes to OFF |
The raising of the soft top is complete.
