Microswitch, soft top cover latch

There are microswitches at each of the soft top cover latches that sense when the cover is in lock position and is ready for locking.

Pin 3 on the left microswitch is connected to control module pin 5 and microswitch pin 2 is connected to grounding point G36.

Pin 3 on the right microswitch is connected to control module pin 33 and microswitch pin 2 is connected to grounding point G36.

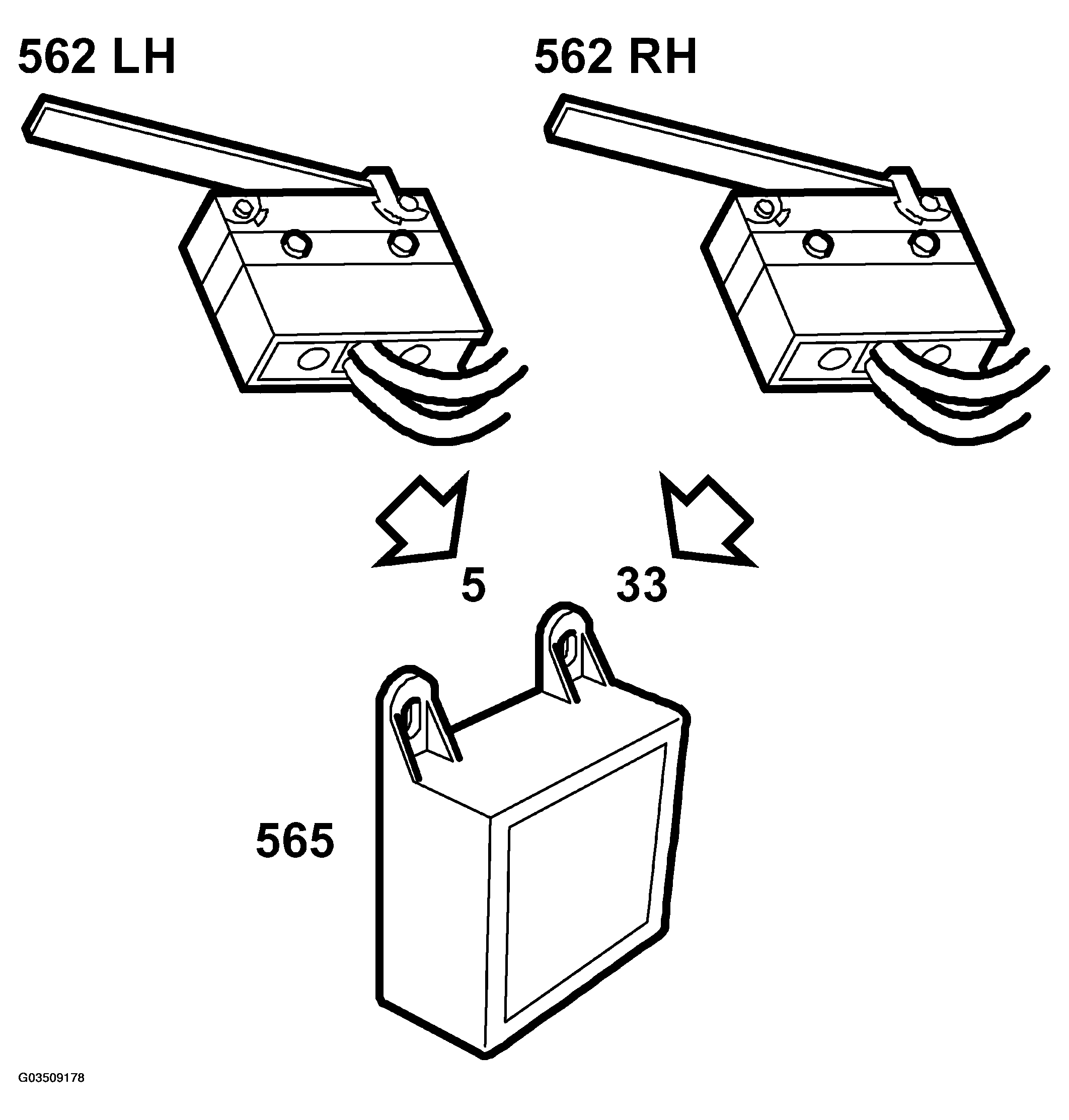

Fig 1: Identifying Soft Top Cover Latch Microswitch Connections

Courtesy of SAAB-SCANIA OF AMERICA, INC.

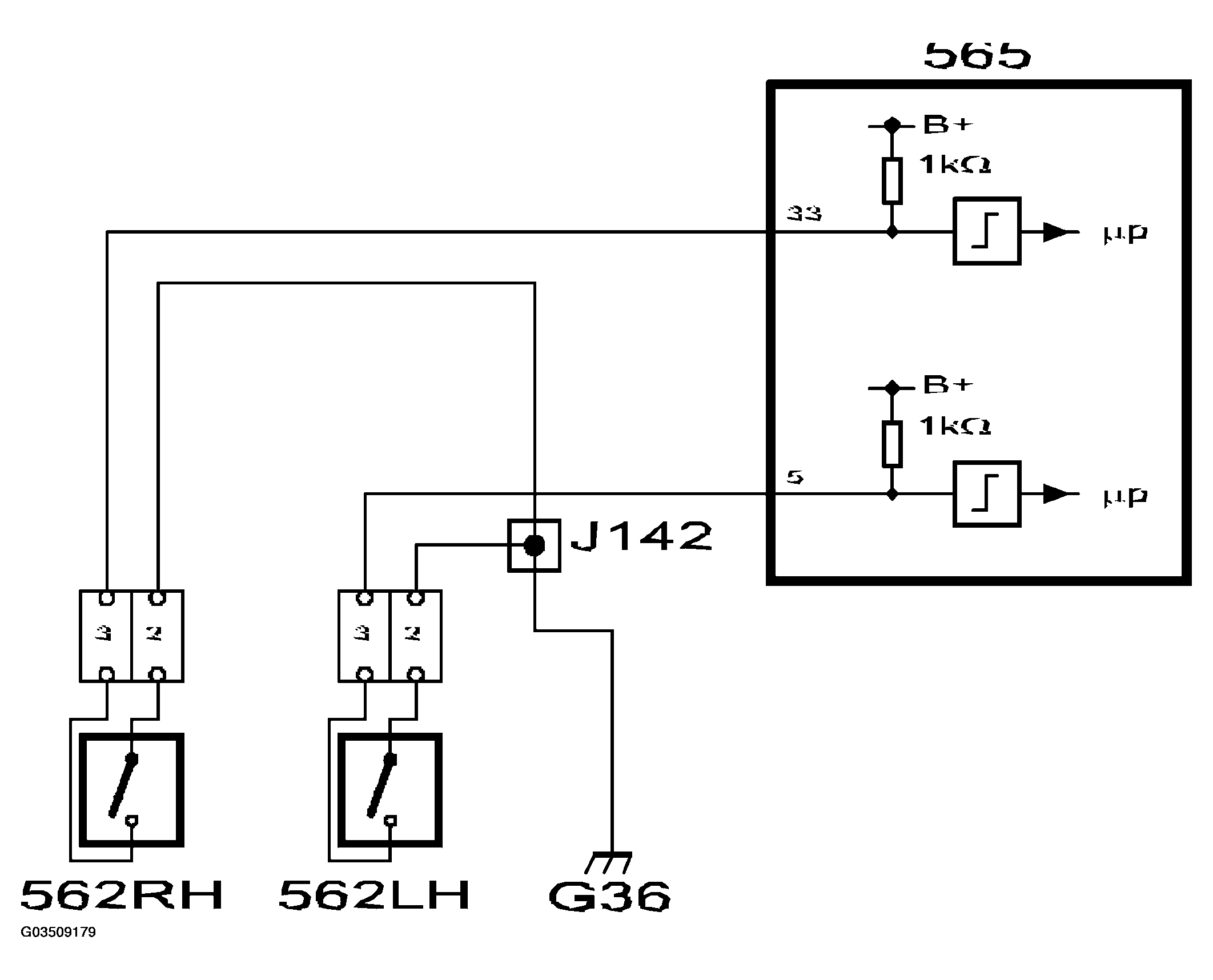

Fig 2: Soft Top Cover Latch Microswitch Operating Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

When the ignition is turned ON, the control module outputs B+ via a 1 kOhm resistor to the microswitches from pin 5 and 33, and the microswitches close when the soft top cover locks and the control module inputs are grounded.
