Main components

  1. Hydraulic unit
  2. Main relay, pump motor
  3. Emergency operating valve
  4. Main sequence hydraulic cylinder (2 pcs)
  5. Fifth bow hydraulic cylinder (2 pcs)
  6. Soft top cover cylinder
  7. Fifth bow latch motor
  8. Hydraulic hoses
  9. Control module
  10. Switches and permanent magnet in windscreen frame (2 pcs)
  11. Microswitch for fifth bow intermediate position
  12. Microswitch for fifth bow latch (2 pcs)

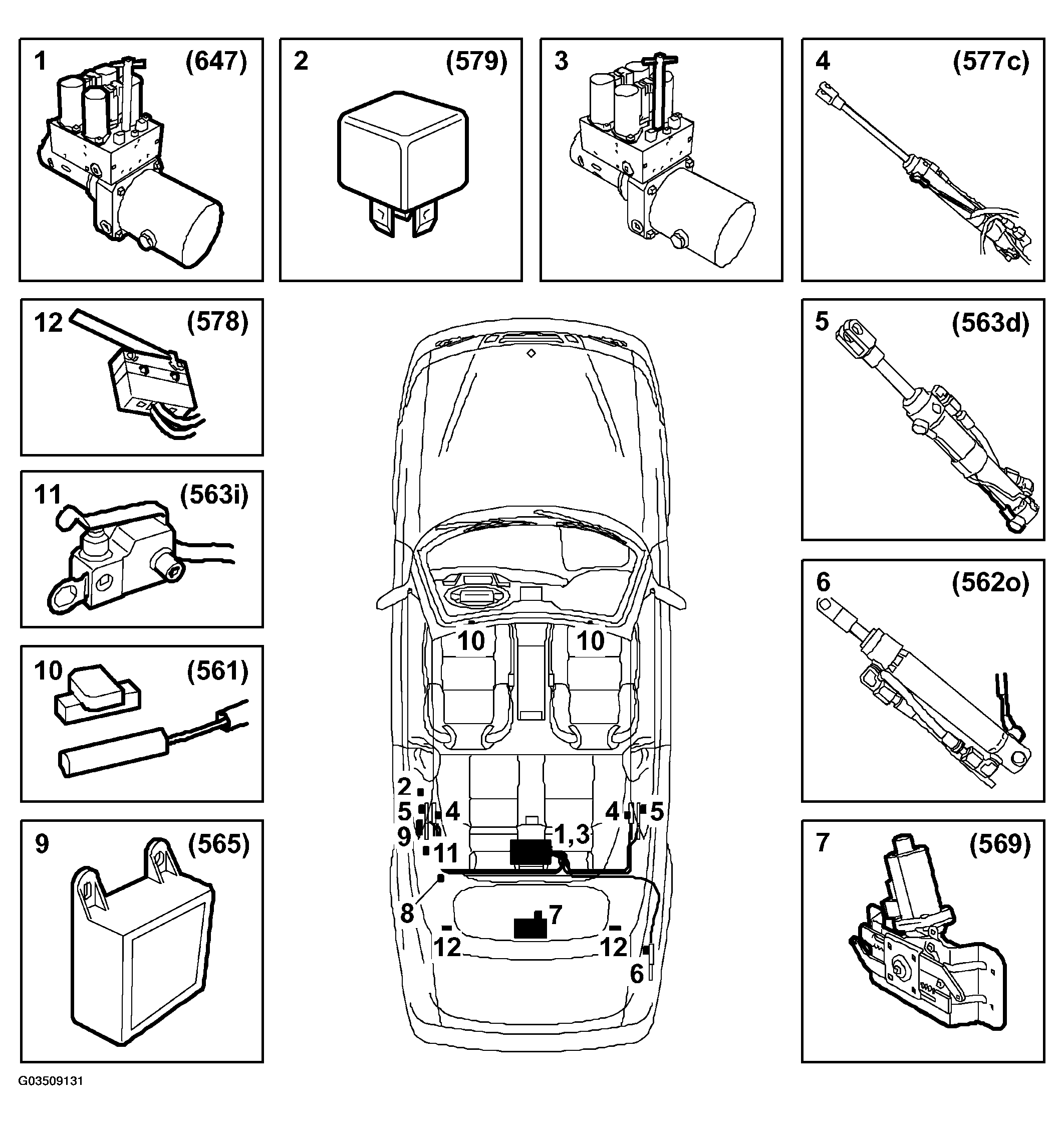

    13. Fig 1: Illustration For Steps 1-12
    G03509131Courtesy of SAAB-SCANIA OF AMERICA, INC.
  13. Microswitch for soft top cover latch (2 pcs)
  14. Microswitch on soft top storage (2 pcs)
  15. Swivel cables for soft top cover (2 pcs)
  16. "ROOF" switch
  17. Window relay (4 pcs)
  18. Fifth bow latch relay
  19. SID
  20. Boot lid release button
  21. Boot lid switch
  22. Boot lid lock motor
  23. Window lift switch

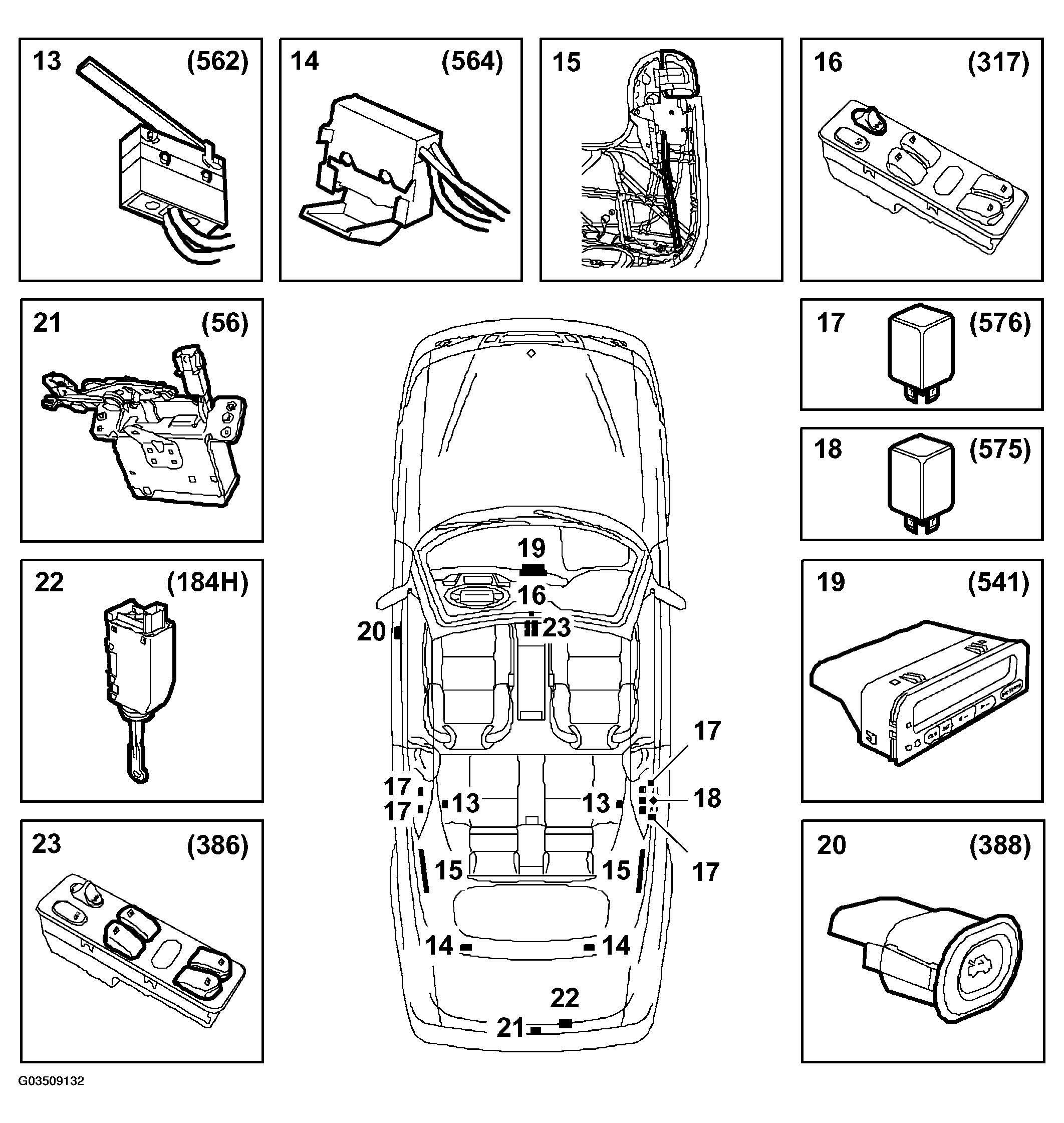

    24. Fig 2: Illustration For Steps 13-23
    G03509132Courtesy of SAAB-SCANIA OF AMERICA, INC.
