9 Soft top cover lowered

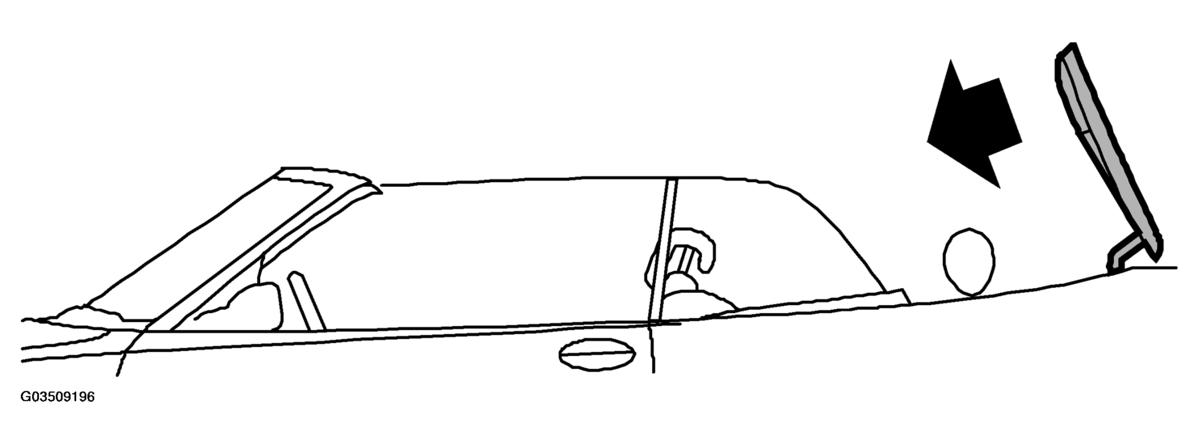

Fig 1: Identifying Soft Top Cover Lowered Position

Courtesy of SAAB-SCANIA OF AMERICA, INC.

SWITCH/MICROSWITCH CONDITION SPECIFICATIONS

Switch/Microswitch	Condition
Soft top cover cylinder, up	ON changes to OFF

The soft top is lowered and the pump assumes the following condition.

FIFTH BOW LATCH MOTOR PUMP, VALVES AND RELAY CONDITION SPECIFICATIONS

Pump, valves, relay for fifth bow latch motor	Condition
Pump, pull	ON changes to OFF
Pump, push	OFF changes to ON
