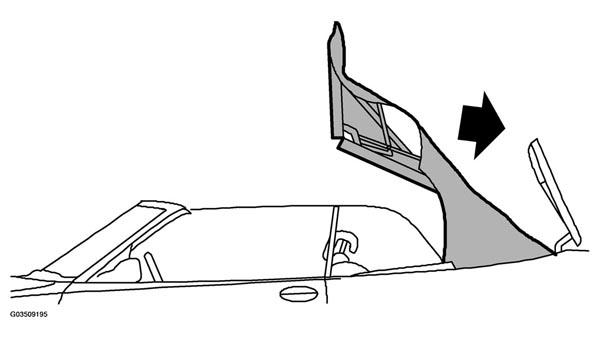

8 Soft top lowered
SWITCH/MICROSWITCH CONDITION SPECIFICATIONS
| Switch/Microswitch | Condition |
|---|---|
| Main cylinder, up | OFF changes to ON |
| Main cylinder, down | OFF changes to ON |
| Fifth bow cylinder, down | OFF changes to ON |
| Fifth bow intermediate position | ON changes to OFF |
The soft top is lowered. The pump, valves and relay for the fifth bow latch motor assume the following conditions.
FIFTH BOW LATCH MOTOR PUMP, VALVES AND RELAY CONDITION SPECIFICATIONS
| Pump, valves, relay for fifth bow latch motor | Condition |
|---|---|
| Valve 1, fifth bow cylinder down | ON changes to OFF |
| Valve 4, main cylinder down | OFF changes to ON |
The main sequence commences, the fifth bow is "freed" and slides into place in the soft top storage.
