7 Fifth bow lowered

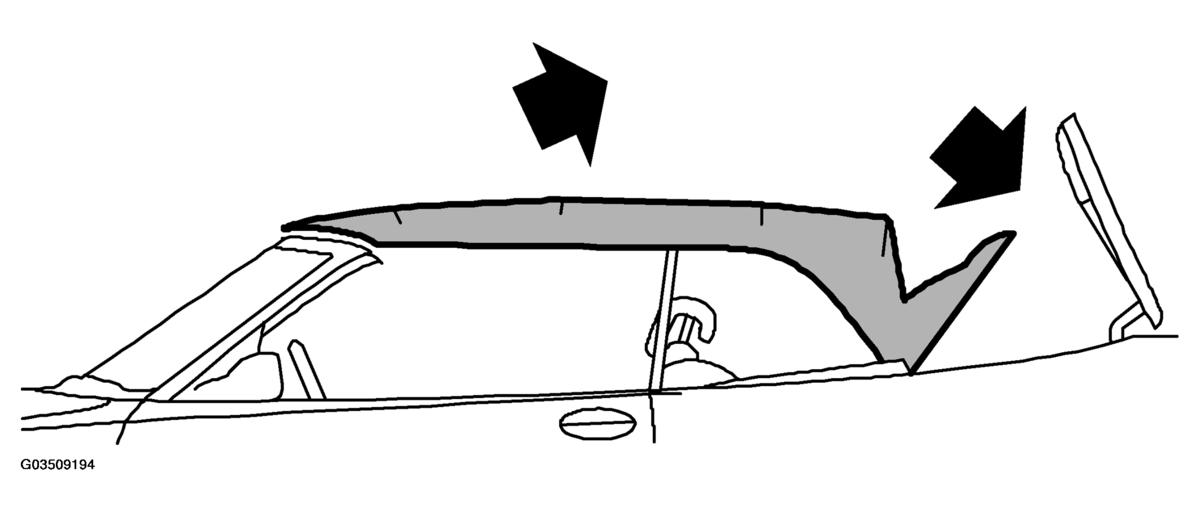

Fig 1: Identifying Fifth Bow Lowered Position

Courtesy of SAAB-SCANIA OF AMERICA, INC.

SWITCH/MICROSWITCH CONDITION SPECIFICATIONS

Switch/Microswitch	Condition
Fifth bow intermediate position	OFF changes to ON

The fifth bow is lowered and the main sequence commences. The pump, valves and relay for the fifth bow latch motor assume the following conditions.

FIFTH BOW LATCH MOTOR PUMP, VALVES AND RELAY CONDITION SPECIFICATIONS

Pump, valves, relay for fifth bow latch motor	Condition
Valve 1, fifth bow cylinder down	OFF changes to ON
Relay for fifth bow latch motor	Lock changes to OFF
