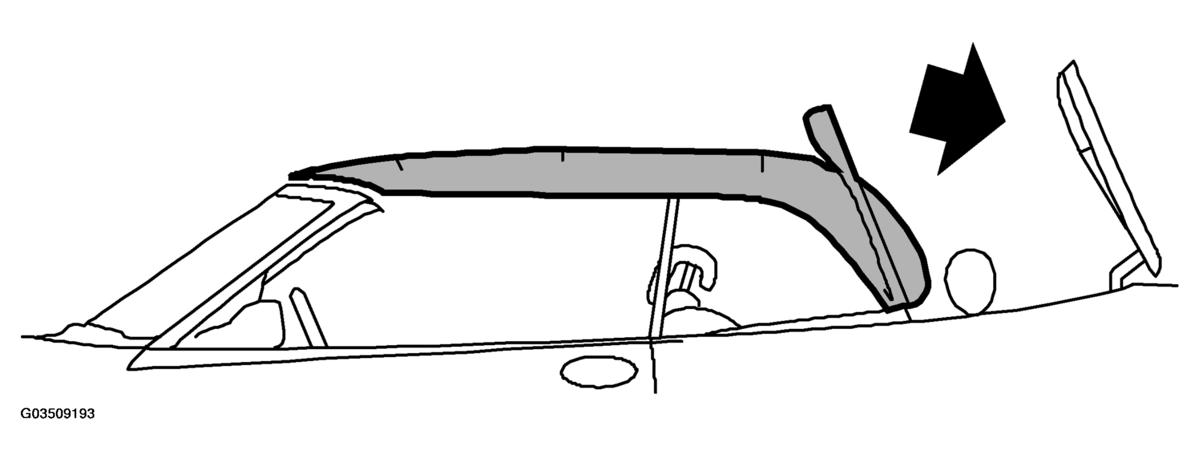

6 Fifth bow lowered and fifth bow latches lock
SWITCH/MICROSWITCH CONDITION SPECIFICATIONS
| Switch/Microswitch | Condition |
|---|---|
| Fifth bow cylinder, up | ON changes to OFF |
The fifth bow is lowered and the fifth bow latches lock at the same time as the swivelling covers close. The pump, valves and relay for the fifth bow latch motor assume the following conditions.
FIFTH BOW LATCH MOTOR PUMP, VALVES AND RELAY CONDITION SPECIFICATIONS
| Pump, valves, relay for fifth bow latch motor | Condition |
|---|---|
| Valve 1, fifth bow cylinder down | OFF changes to ON |
| Valve 3, fifth bow cylinder up | ON changes to OFF |
| Relay for fifth bow latch motor | OFF changes to Unlock |
