5 Soft top cover raised

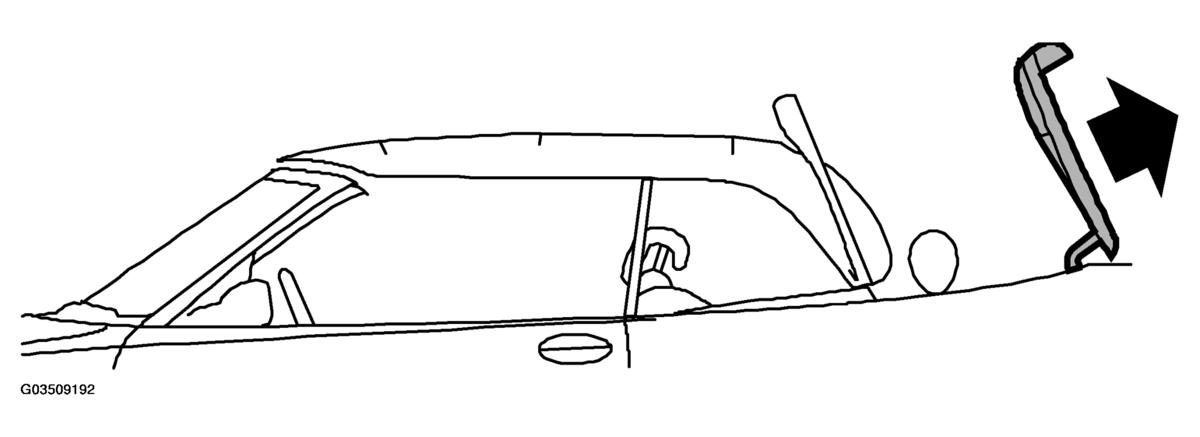

Fig 1: Identifying Soft Top Cover Raised Position
G03509192Courtesy of SAAB-SCANIA OF AMERICA, INC.
SWITCH/MICROSWITCH CONDITION SPECIFICATIONS

Switch/Microswitch Condition
Soft top cover cylinder, up OFF changes to ON

Soft top cover is raised.
