4 Soft top cover latches unlock

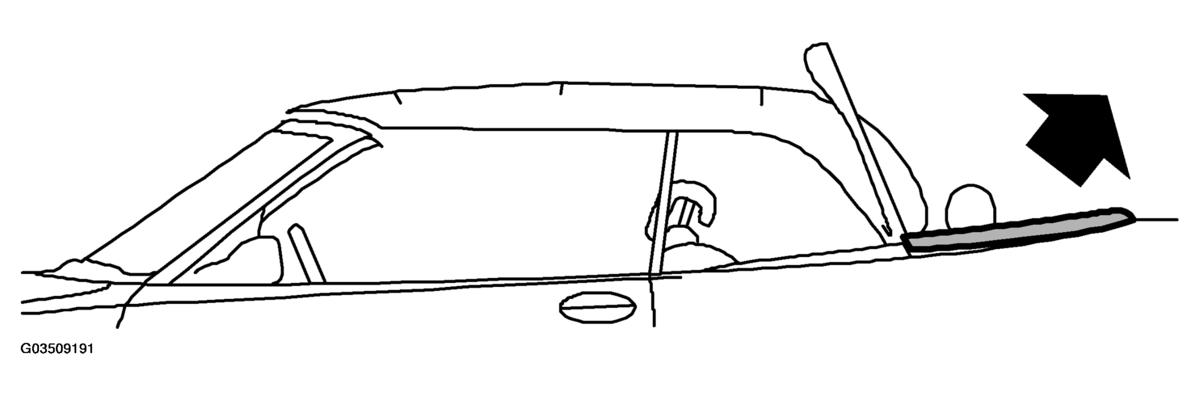

Fig 1: Identifying Soft Top Cover Latches Unlock Position
G03509191Courtesy of SAAB-SCANIA OF AMERICA, INC.
SWITCH/MICROSWITCH CONDITION SPECIFICATIONS

Switch/Microswitch Condition
Soft top cover latch, left CLOSED changes to OPEN
Soft top cover latch, right CLOSED changes to OPEN

The soft top cover latches unlock and the pump assumes the following condition.

FIFTH BOW LATCH MOTOR PUMP, VALVES AND RELAY CONDITION SPECIFICATIONS

Pump, valves, relay for fifth bow latch motor Condition
Pump, pull OFF changes to ON
Pump, push ON changes to OFF
