3 Fifth bow raised

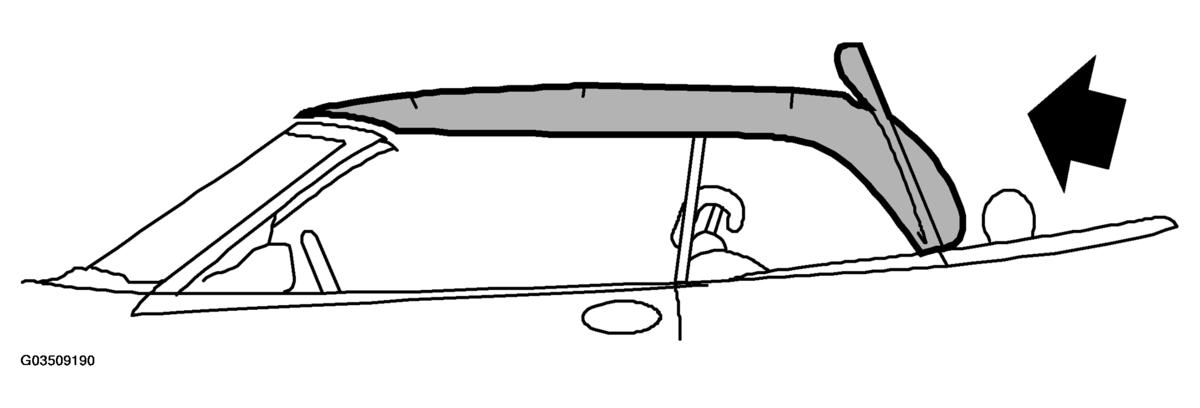

Fig 1: Identifying Fifth Bow Raised Position

Courtesy of SAAB-SCANIA OF AMERICA, INC.

SWITCH/MICROSWITCH CONDITION SPECIFICATIONS

Switch/Microswitch	Condition
Fifth bow cylinder, up	OFF changes to ON
Fifth bow intermediate position	ON changes to OFF

The fifth bow is raised and the pump, valves and relay for the fifth bow latch motor assume the following conditions

FIFTH BOW LATCH MOTOR PUMP, VALVES AND RELAY CONDITION SPECIFICATIONS

Pump, valves, relay for fifth bow latch motor	Condition
Pump, push	OFF changes to ON
Valve 3, fifth bow cylinder up	OFF changes to ON
Relay for fifth bow latch motor	Unlock changes to OFF
