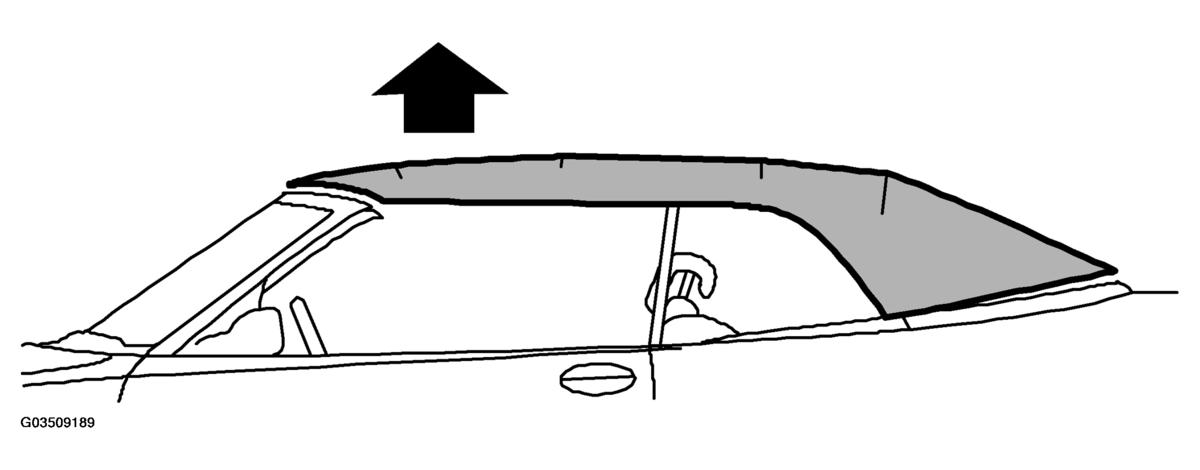

2 Windscreen frame latches open, fifth bow latches unlock
SWITCH/MICROSWITCH CONDITION SPECIFICATIONS
| Switch/Microswitch | Condition |
|---|---|
| Windscreen frame, left | ON changes to OFF |
| Windscreen frame, right | ON changes to OFF |
| Fifth bow latch, left | ON changes to OFF |
| Fifth bow latch, right | ON changes to OFF |
The first bow is unlocked manually with the latch handle. The fifth bow latches unlock and the pump, valves and relay for the fifth bow latch motor take the following conditions
FIFTH BOW LATCH MOTOR PUMP, VALVES AND RELAY CONDITION SPECIFICATIONS
| Pump, valves, relay for fifth bow latch motor | Condition |
|---|---|
| Pump, pull | OFF |
| Pump, push | OFF |
| Valve 1, fifth bow cylinder down | OFF |
| Valve 2, main cylinder up | OFF |
| Valve 3, fifth bow cylinder up | OFF |
| Valve 4, main cylinder down | OFF |
| Relay for fifth bow latch motor | Unlock |
