10 Soft top cover latches lock

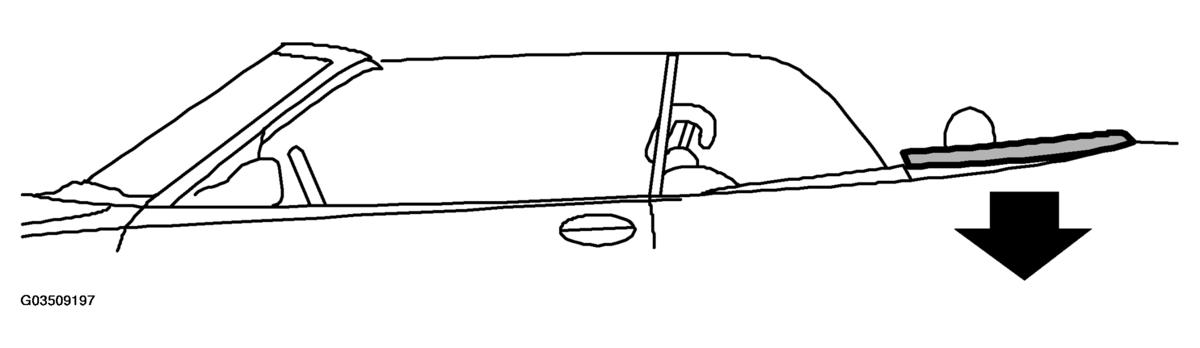

Fig 1: Identifying Soft Top Cover Latches Lock Position
G03509197Courtesy of SAAB-SCANIA OF AMERICA, INC.
SWITCH/MICROSWITCH CONDITION SPECIFICATIONS

Switch/Microswitch Condition
Soft top cover latch, left OFF changes to ON
Soft top cover latch, right OFF changes to ON

The soft top cover latches lock
