Technical Description
>>
Control module outputs
Control module outputs

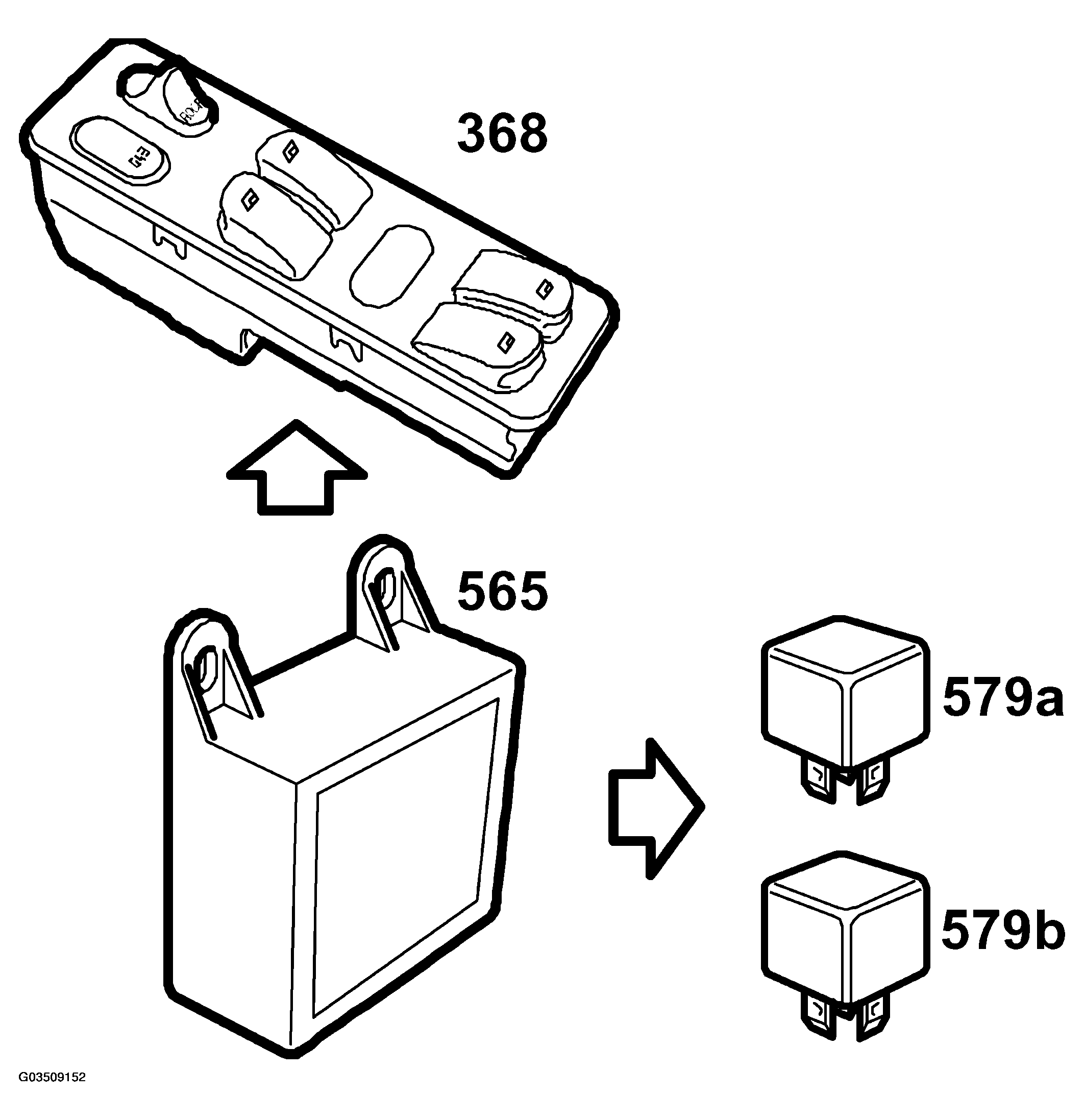

Fig 1: Control Module Outputs Communication Components
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Pump relay, push (579a). See
FUSES & CIRCUIT BREAKERS
Pump relay, pull (579b). See
FUSES & CIRCUIT BREAKERS
Power supply, switch panel (386). See
FUSES & CIRCUIT BREAKERS
