Control module outputs, bus

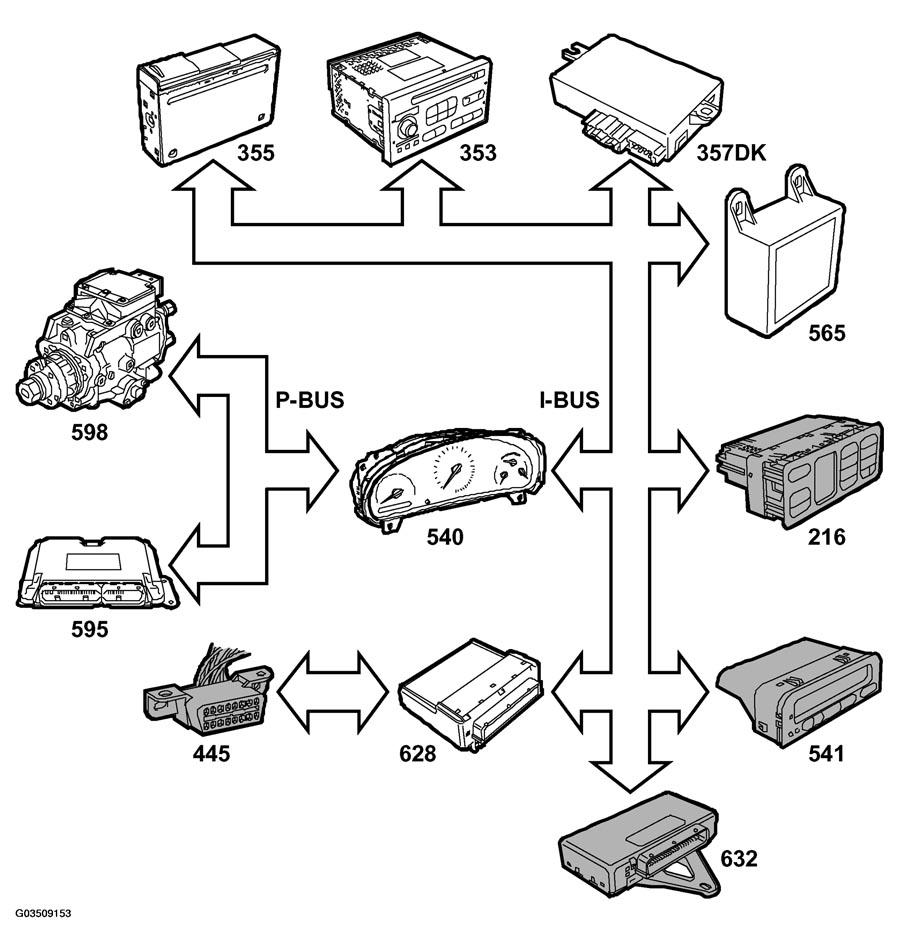

Fig 1: Bus Control Module Outputs Communication Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

SID (541) STC control module sends bus message "Sound and text information" to SID. See FUSES & CIRCUIT BREAKERS
ACC (216) STC control module sends bus information "Soft top position ", unit Closed, In motion or Opened to ACC. See FUSES & CIRCUIT BREAKERS
TWICE (632) STC control module sends bus information "Soft top position ", unit Closed, In motion, or Opened to TWICE. See FUSES & CIRCUIT BREAKERS
Diagnostic communications (445) See FUSES & CIRCUIT BREAKERS
