Control module ground: Notes

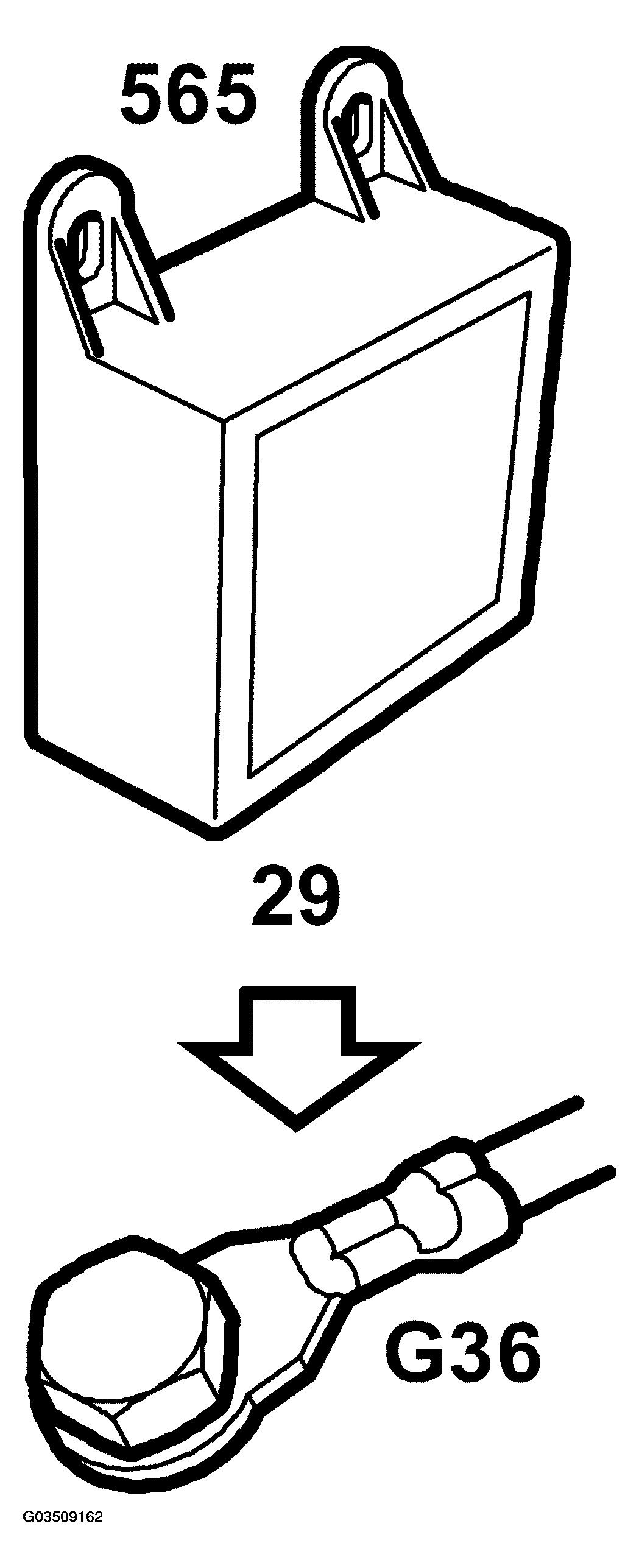

Fig 1: Identifying Control Module Grounding Point

Courtesy of SAAB-SCANIA OF AMERICA, INC.

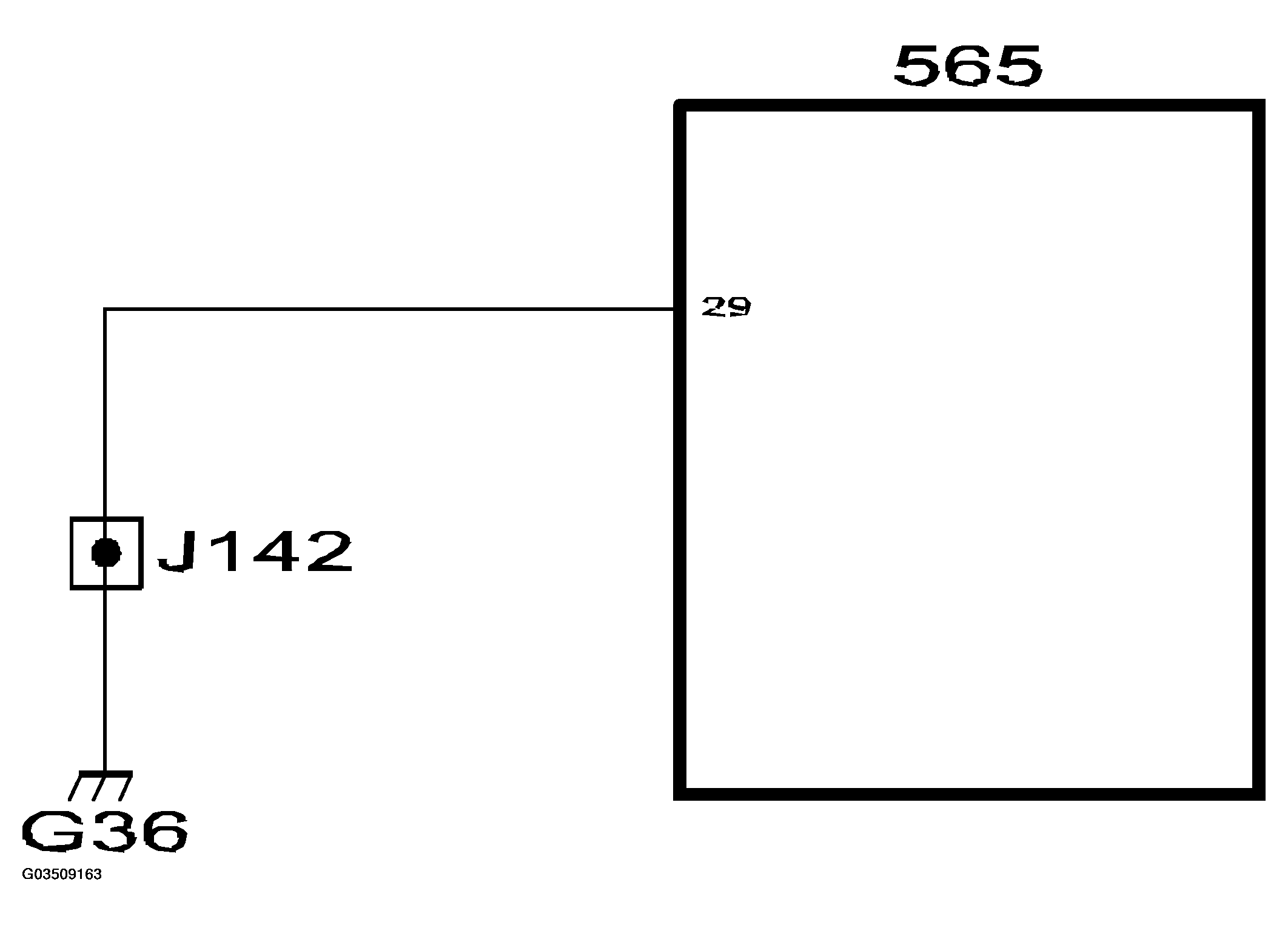

Fig 2: Control Module Grounding Connection Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The control module is grounded through pin 29 in grounding point G36. This grounding point is common to, among other, microswitches, switches and hydraulic valves through crimp J142.
