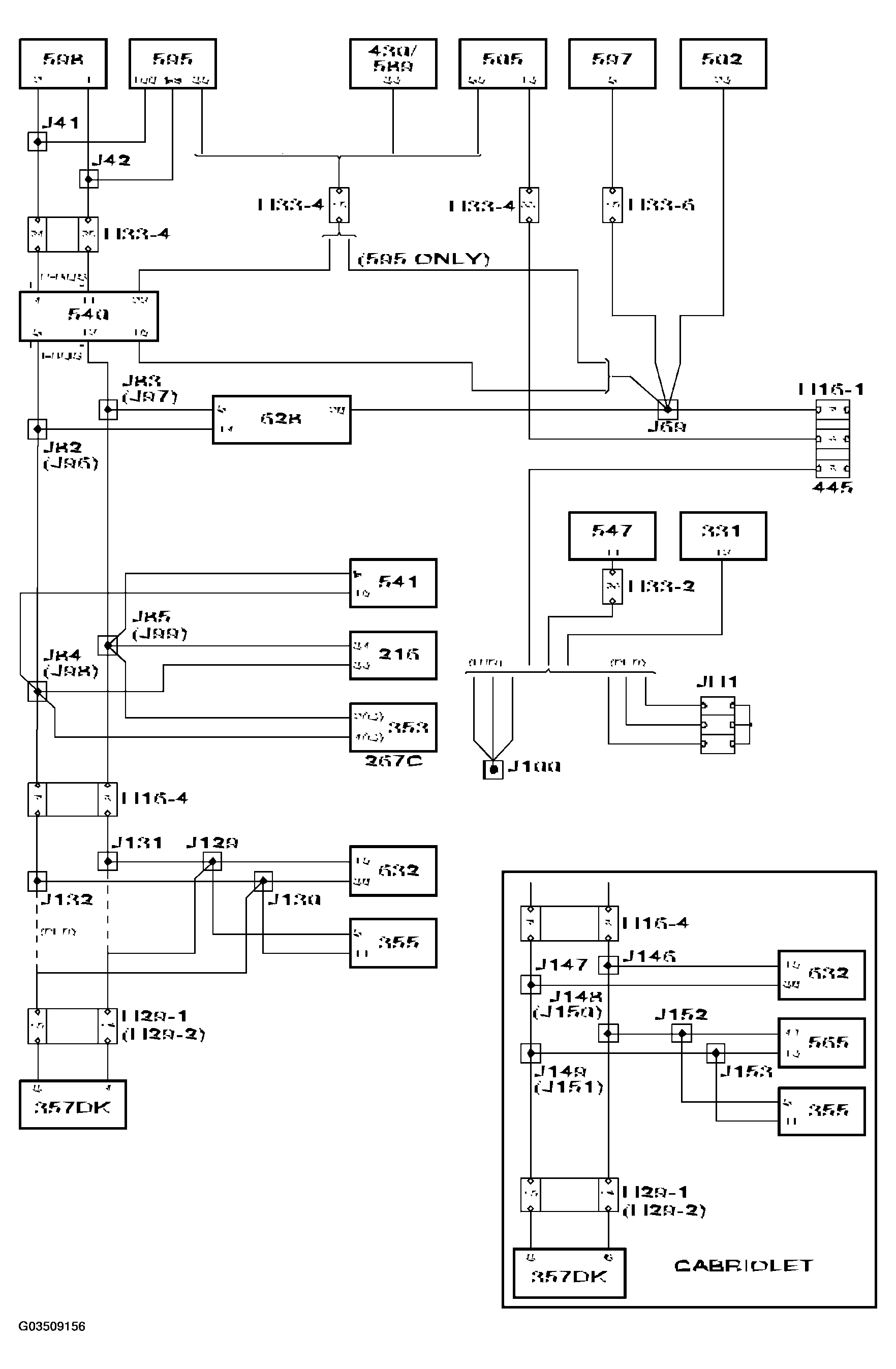

Bus communication: Notes
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Control module, ACC (216)
- Radio connector C (267c)
- Control module, airbag/SRS (331)
- Radio (353)
- CD changer (355)
- Control module PSM (357Dk)
- Control module Trionic (430)
- Control module TCM (502)
- Control module M2.10.3 (505)
- MIU (540)
- SID (541)
- Control module ABS (547)
- Control module STC (565)
- Control module Trionic OBDII (589)
- Control module EDC 15 (595)
- Control module auxiliary heater (597)
- Diesel pump (598)
- Control module DICE (628)
- Control module TWICE (632)
