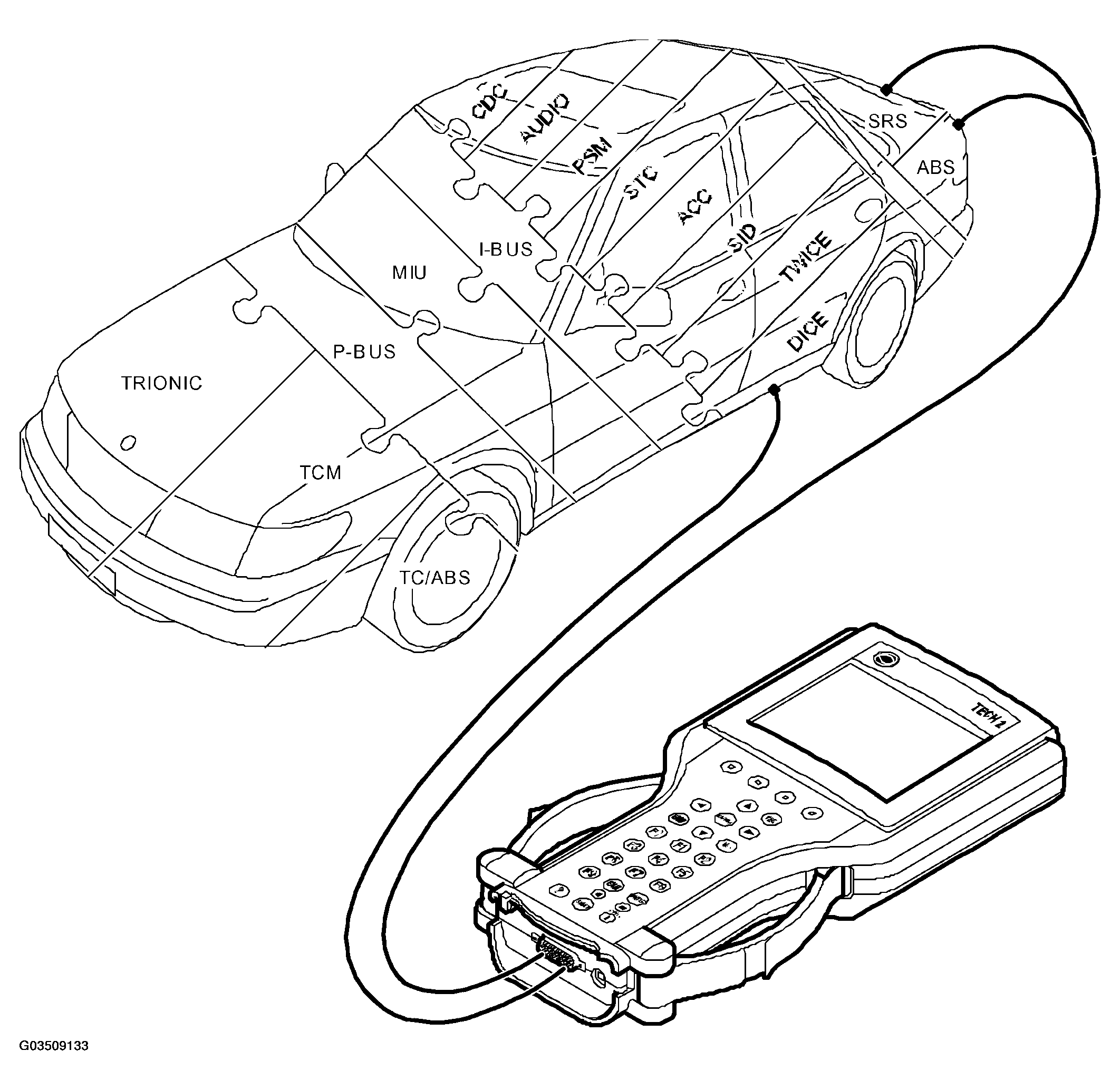

P-bus and I-bus
A lesser number of control modules are connected to the bus systems in the Saab 9 -3 when compared to the Saab 9-5.
The two power train systems EDC and diesel pump are not connected to the I -bus, however. These systems require much faster communication to eliminate noticeable delays, e.g. when EDC requests a certain amount of fuel for injection.
Therefore, they are connected through a separate buss called the P-bus (Powertrain Bus). The P-bus has a data transfer rate ten times higher than that of the I -bus.
The P-bus is also connected to the MIU (Main Instrument Unit). The MIU ensures that the information that is available on one bus is also available on the other.
