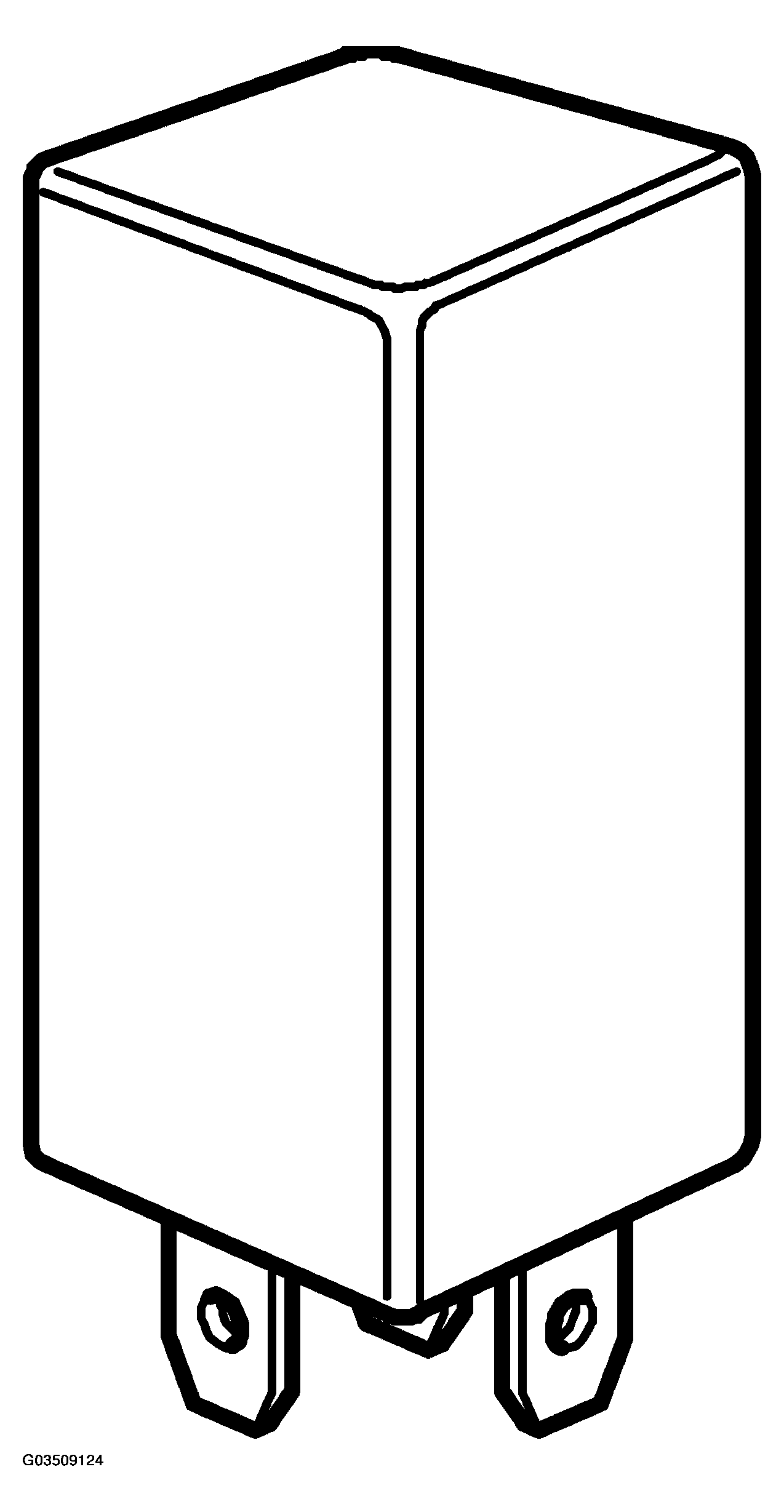

Window lift relay
TECHNICAL DATA - WINDOW LIFT RELAY
| Type | Two-pole alternating, controlled by VR -bus messages, programmable as spare part. | |
| Power supply for window lift motor +54 | Pin | 1 |
| Power supply for relay internal +54 | Pin | 2 |
| For window lift motor | Pin | 3 |
| For window lift motor | Pin | 4 |
| Ground for window lift motor | Pin | 5 |
| Ground for relay internal | Pin | 6 |
| No connection | Pin | 7 |
| VR-bus + | Pin | 8 |
