Pump motor

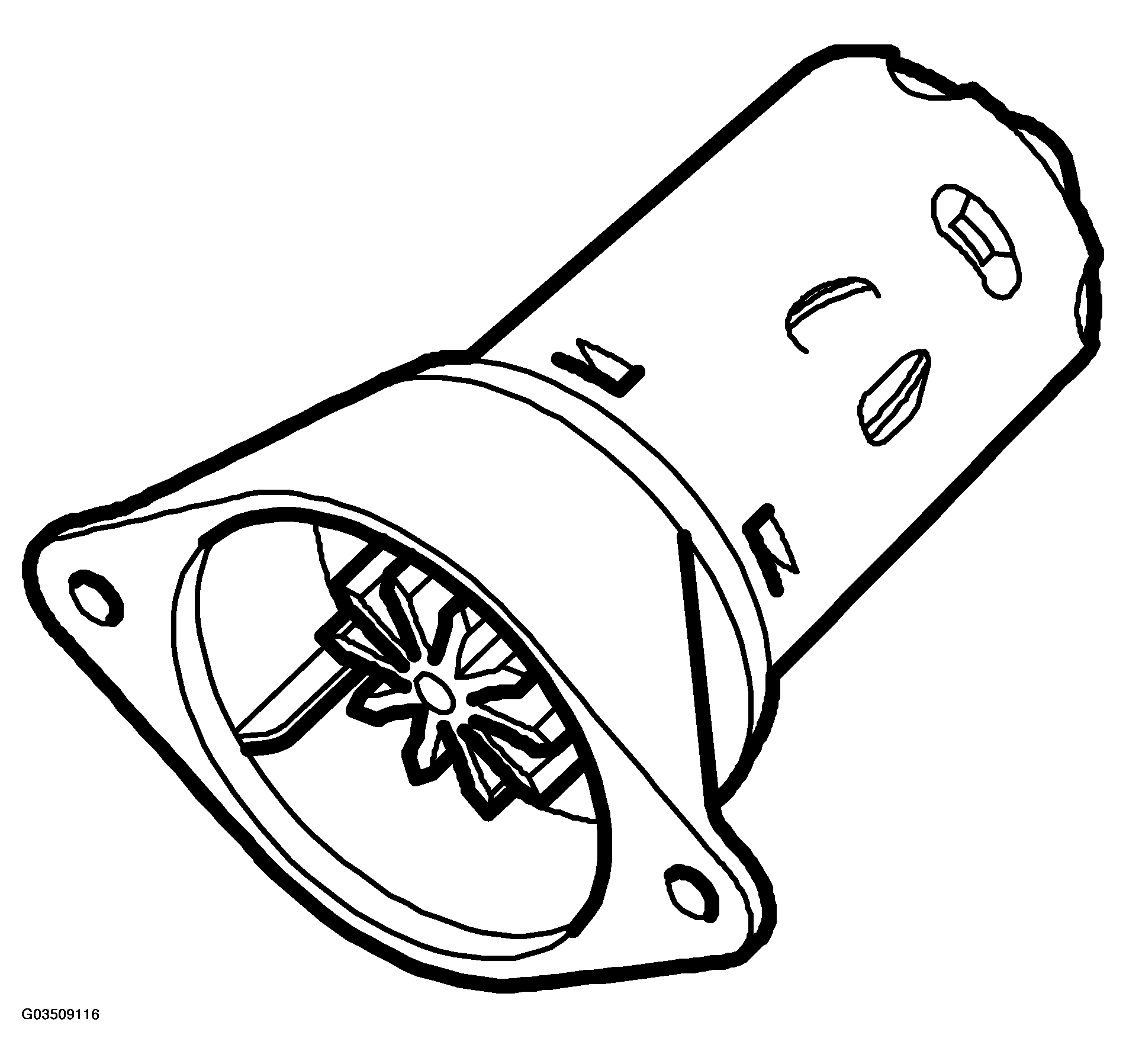

Fig 1: View Of Pump Motor
G03509116Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - PUMP MOTOR

Motor type   Permanent magnet
Power supply V 12
Current consumption at 140 bar A 27
Max. current consumption A 30
System pressure bar 120 +10/-0
