Microswitch, windscreen frame

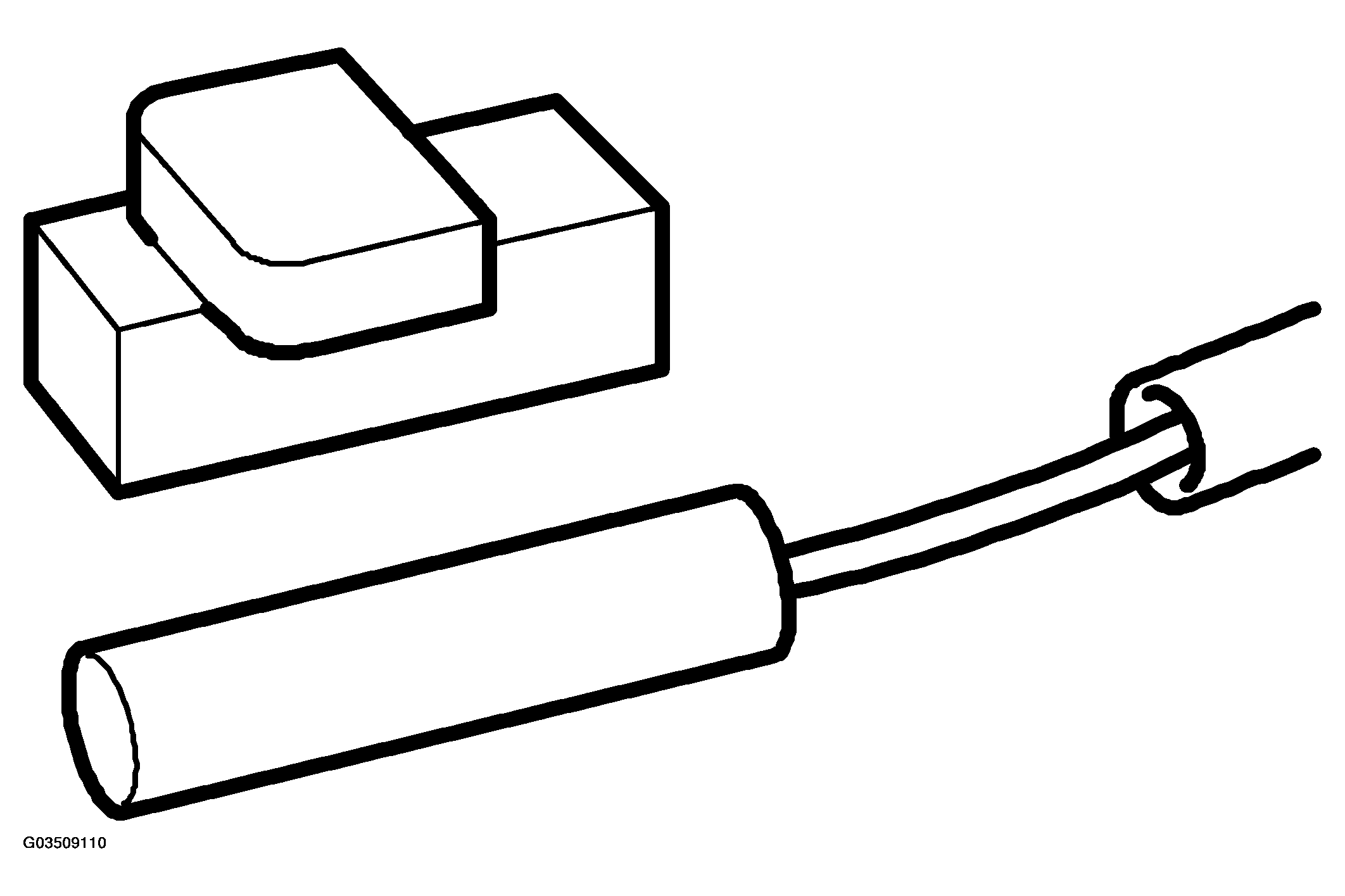

Fig 1: Identifying Windscreen Frame Microswitch
G03509110Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - WINDSCREEN FRAME MICROSWITCH

Connected to control module pin No. 3
Ground connection pin No. 2
Switch inactive   open
Switch active   closed
