Microswitch, soft top storage

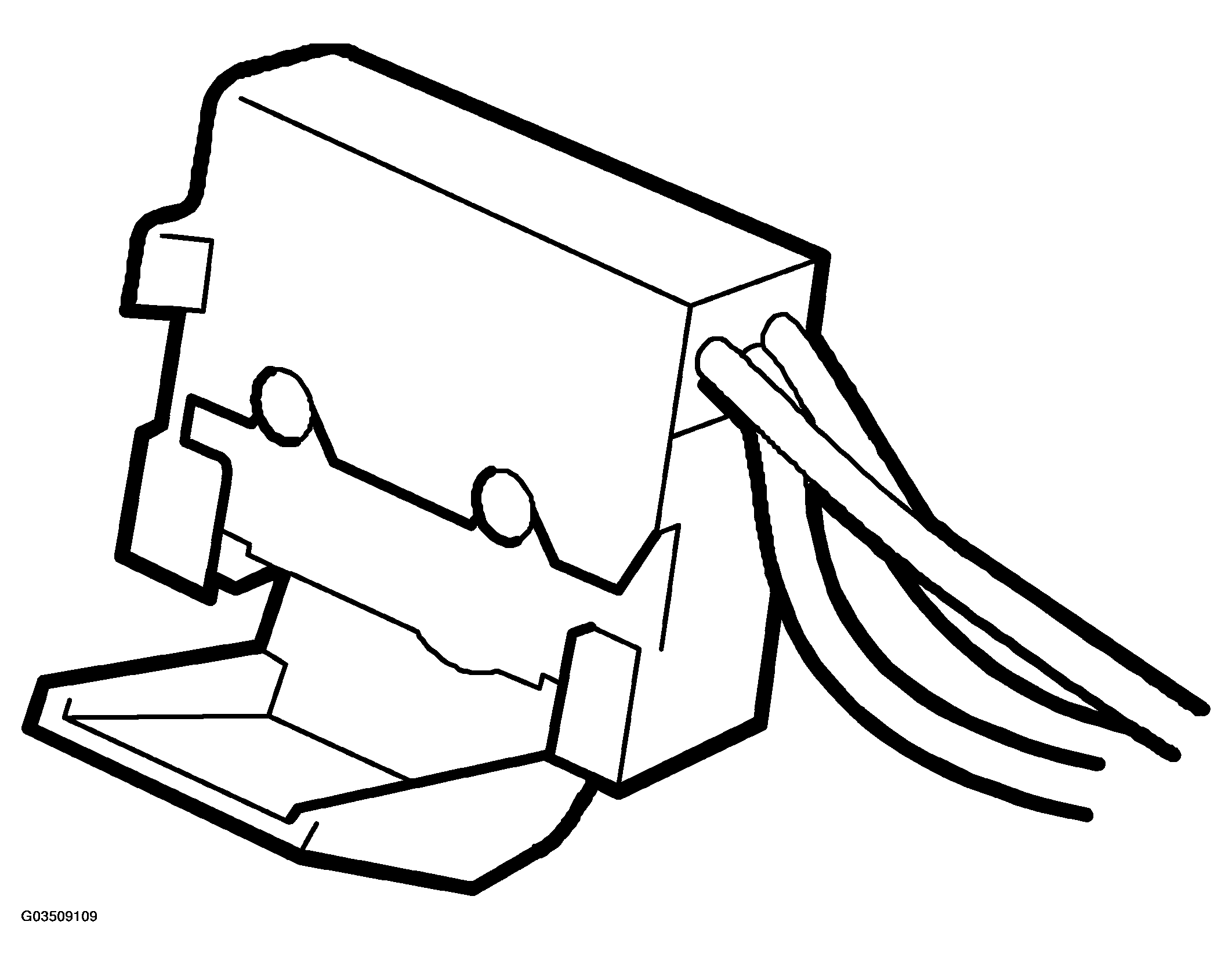

Fig 1: Identifying Soft Top Storage Microswitch
G03509109Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - SOFT TOP STORAGE MICROSWITCH

Connected to control module pin No. 1
Ground connection pin No. 2
Switch inactive   closed
Switch active   open
