Microswitch, soft top cover latch

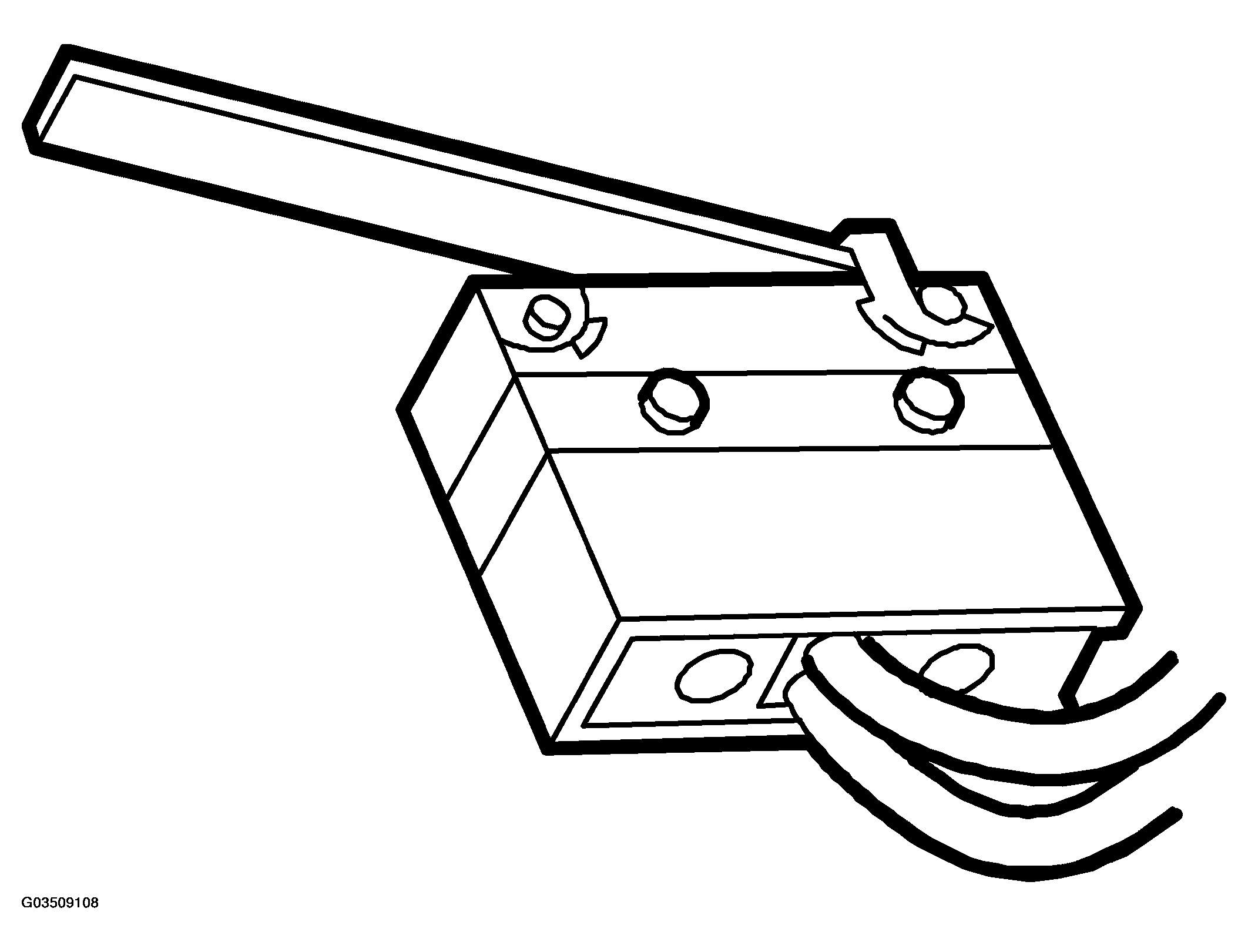

Fig 1: Identifying Soft Top Cover Latch Microswitch
G03509108Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - SOFT TOP COVER LATCH MICROSWITCH

Connected to control module pin No. 3
Ground connection pin No. 2
Switch inactive   open
Switch active   closed
