Microswitch, fifth bow latch

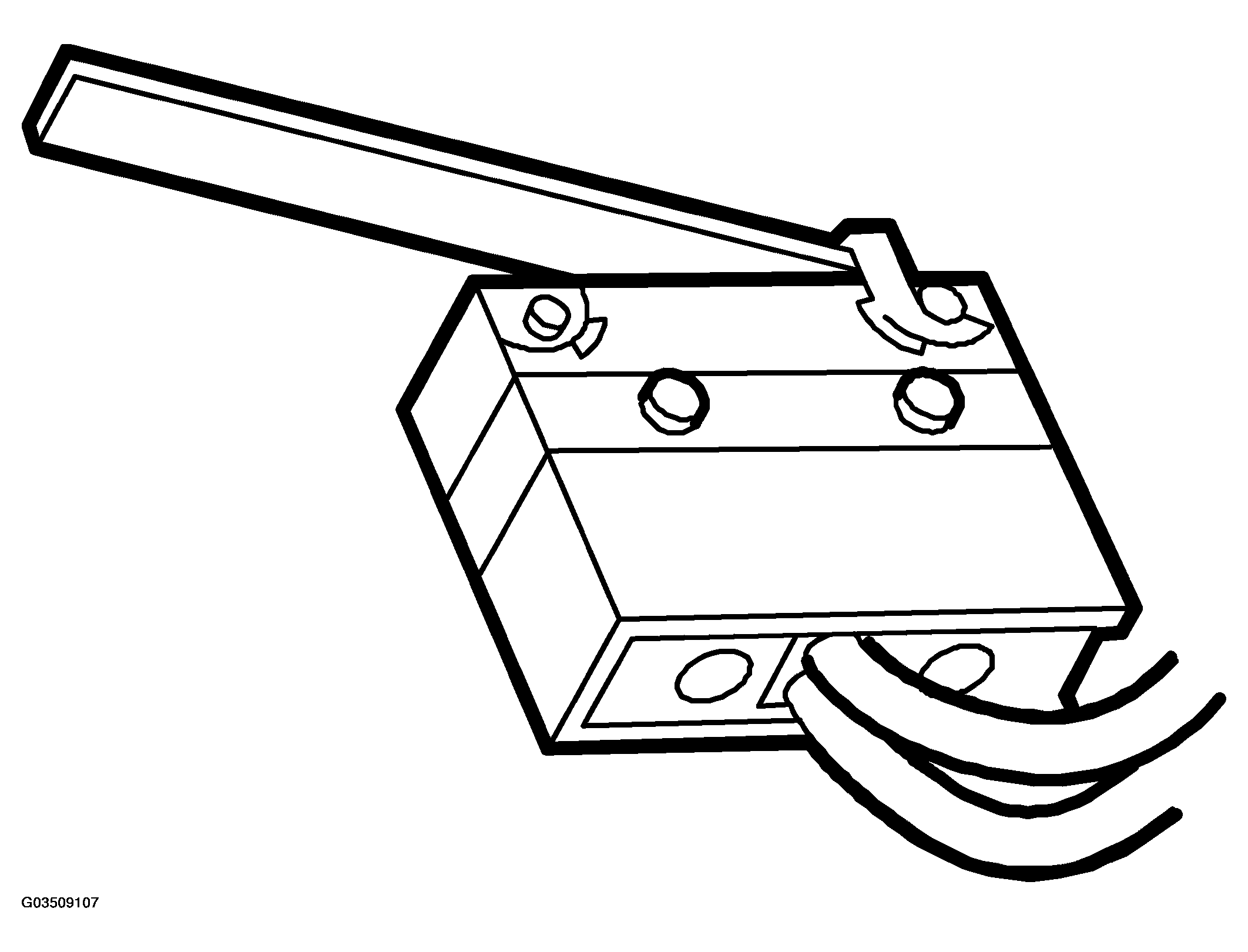

Fig 1: Identifying Fifth Bow Latch Microswitch
G03509107Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - FIFTH BOW LATCH MICROSWITCH

Connected to control module pin No. 3
Ground connection pin No. 2
Switch inactive   open
Switch active   closed
