Microswitch, fifth bow intermediate position

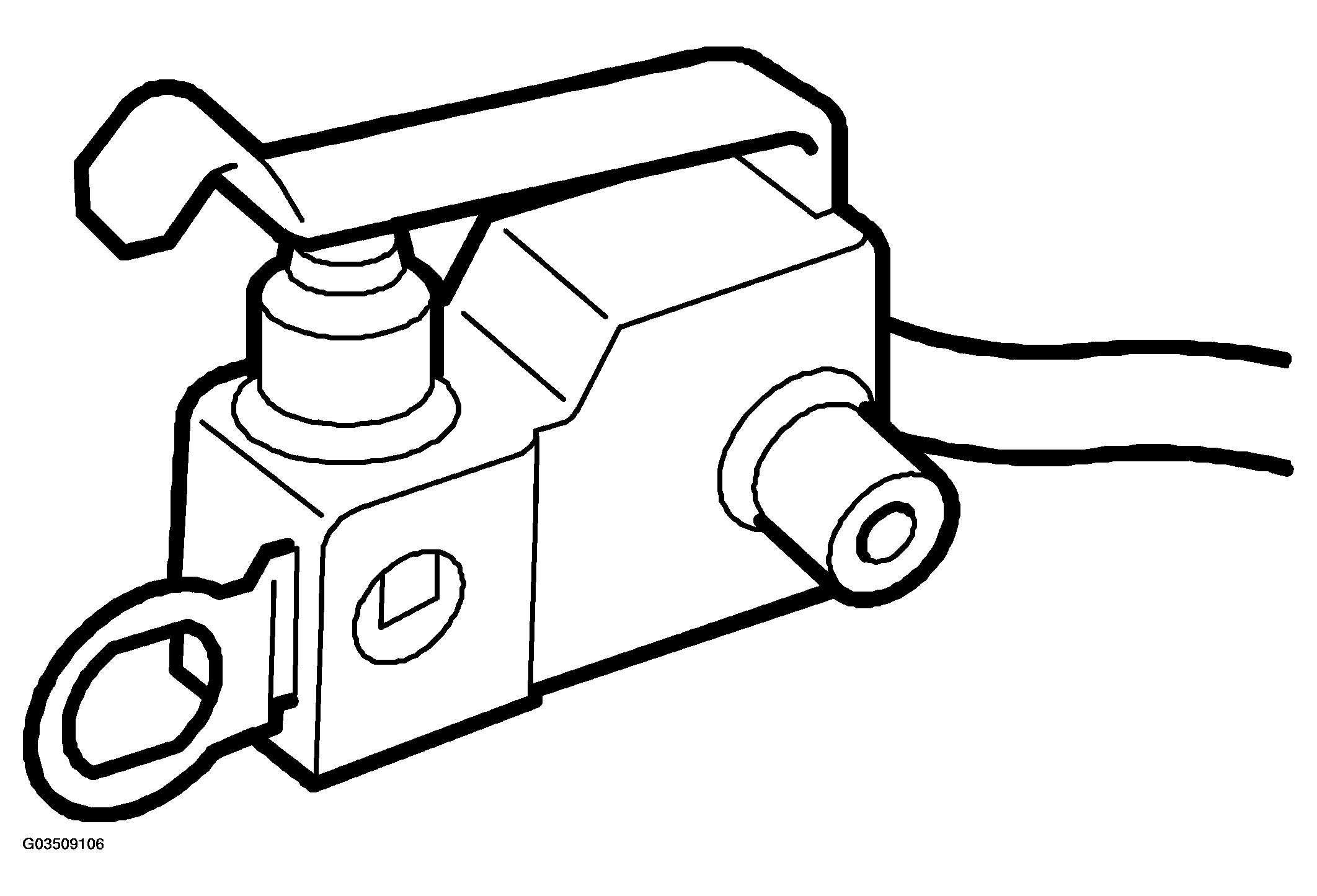

Fig 1: Identifying Microswitch (Fifth Bow)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA - MICROSWITCH (FIFTH BOW)

Connected to control module	pin No.	3
Ground connection	pin No.	2
Switch inactive		open
Switch active		closed
