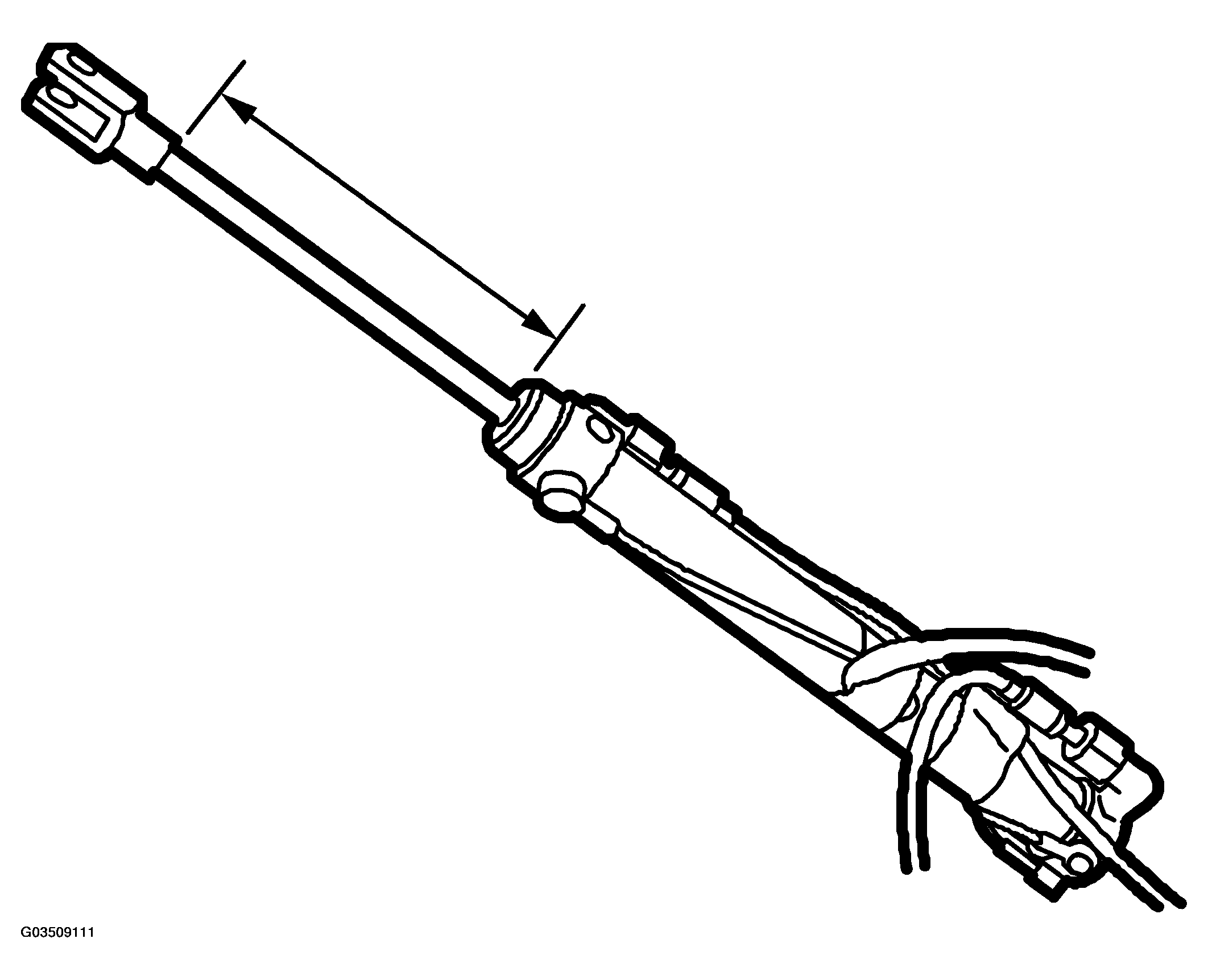

Main sequence hydraulic cylinder
TECHNICAL DATA - MAIN SEQUENCE HYDRAULIC CYLINDER
| Contracted length, soft top down (open) | mm | 3.5 |
| Extended length, soft top up (closed) | mm | 151.5 |
| Contracted length, soft top down (open) End position switch activ | mm | 13 |
| Extended length, soft top up (closed) End position switch active | mm | 140 |
| Force when lowering (opening) | N | Min. 3100/ Max. 3500 |
| Force when raising (closing) | N | Min. 4100/ Max. 4700 |
| Switch, upper position, soft top completely up (closed) | closed | |
| Switch, lower position, soft top completely down (open) | closed |
