Main relay, pump motor

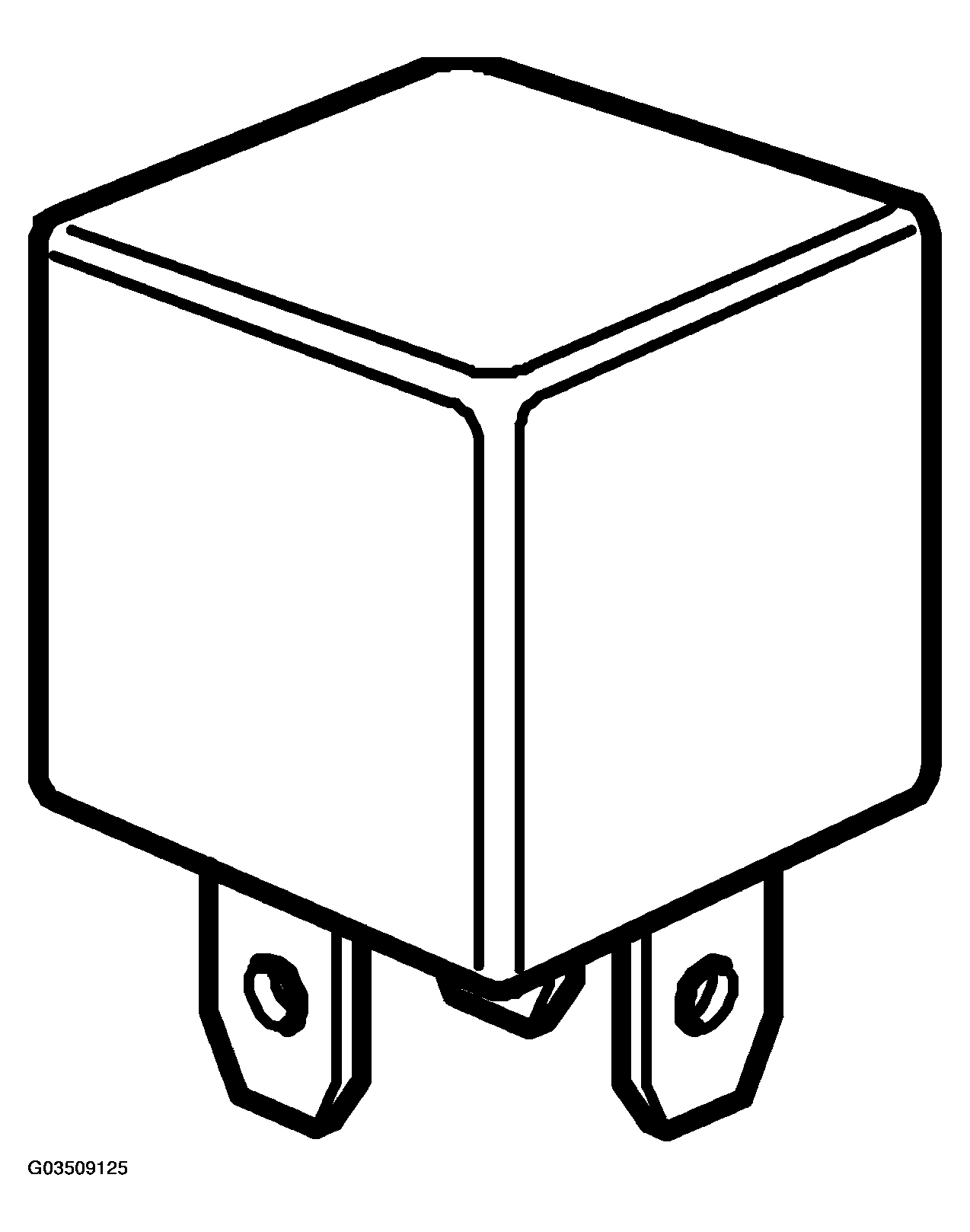

Fig 1: Identifying Pump Motor Main Relay

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA - PUMP MOTOR MAIN RELAY

Resistance, operational winding at 20°C	Ohm	80 -- 90
Nominal operating voltage	V	12
Rated power, active position	A	30
