Hydraulic hoses: Location

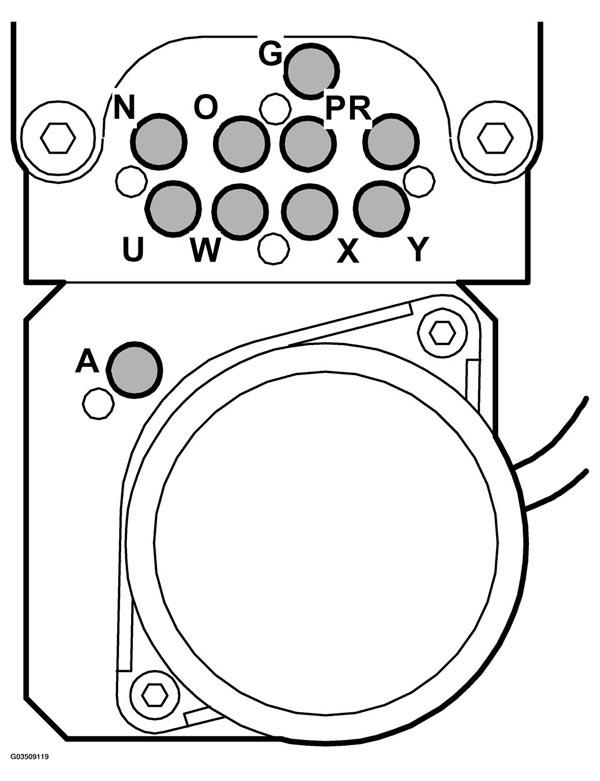

Fig 1: Locating Hydraulic Pump Hose Connection Point
G03509119Courtesy of SAAB-SCANIA OF AMERICA, INC.
HYDRAULIC HOSE LENGTH SPECIFICATIONS

Hydraulic hose marking FAILURE Hydraulic cylinder connection Length in mm
N Main hydraulic cylinder DOWN Main hydraulic cylinder, LH, upper 1335
O Main hydraulic cylinder UP Main hydraulic cylinder, LH, lower 1185
P Fifth bow hydraulic cylinder DOWN Fifth bow hydraulic cylinder, LH, upper 1235
R Fifth bow hydraulic cylinder UP Fifth bow hydraulic cylinder, LH lower 1075
U Main hydraulic cylinder DOWN Main hydraulic cylinder, RH, upper 1850
W Main hydraulic cylinder UP Main hydraulic cylinder, RH, lower 1660
G Fifth bow hydraulic cylinder DOWN Fifth bow hydraulic cylinder, RH, upper 1665
Y Fifth bow hydraulic cylinder UP Fifth bow hydraulic cylinder, RH, lower 1510
X Soft top cover hydraulic cylinder DOWN Soft top cover hydraulic cylinder, upper 1640
A Soft top cover hydraulic cylinder UP Soft top cover hydraulic cylinder, lower 1900
  1. Fifth bow hydraulic cylinder, LH
  2. Main hydraulic cylinder, LH
  3. Main hydraulic cylinder, RH
  4. Fifth bow hydraulic cylinder, RH
  5. Soft top cover cylinder
  6. Hydraulic unit

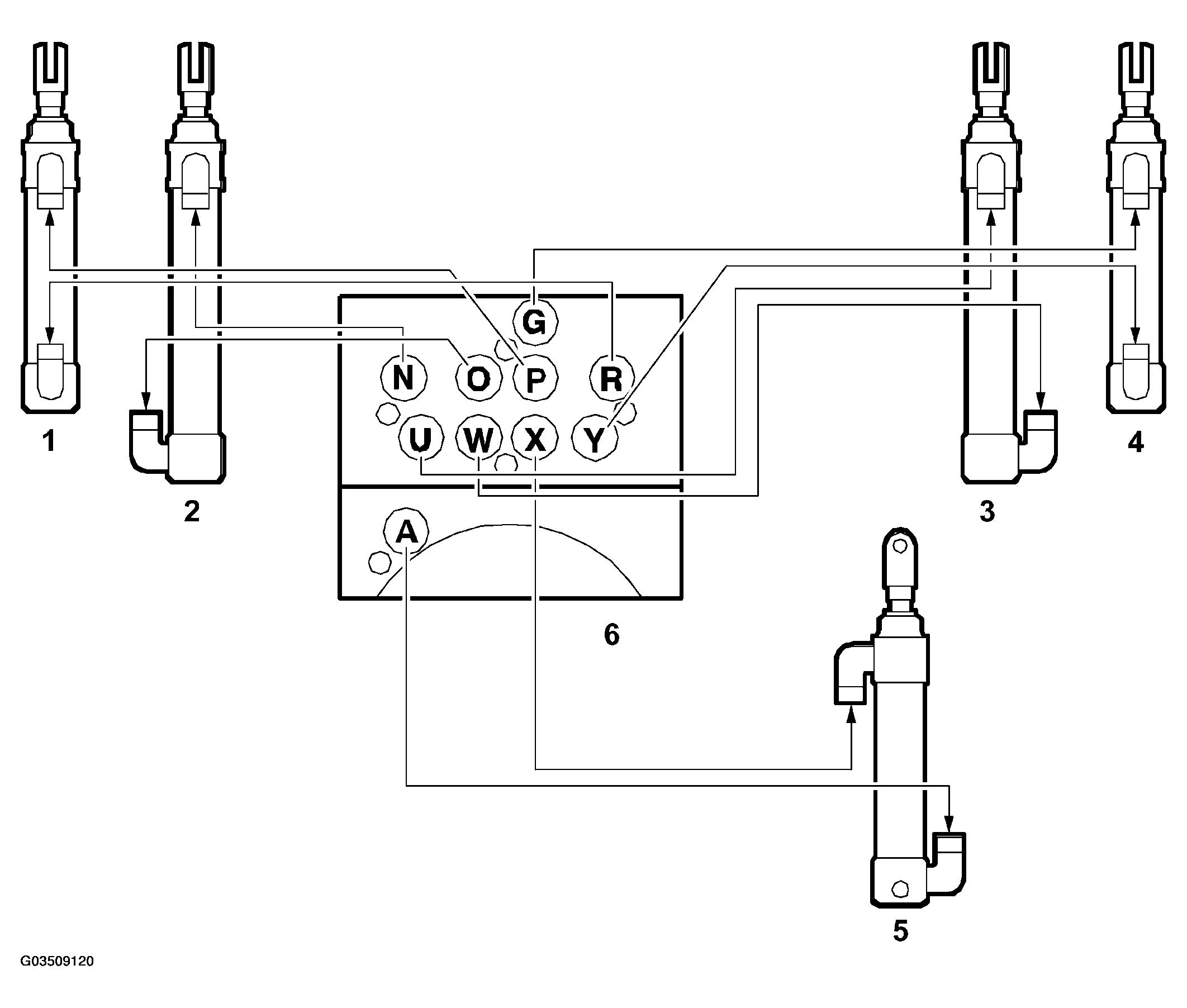

    Fig 2: Illustration For Steps 1-6
    G03509120Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: The minimum bending radius for the hydraulic hose is 40 mm.

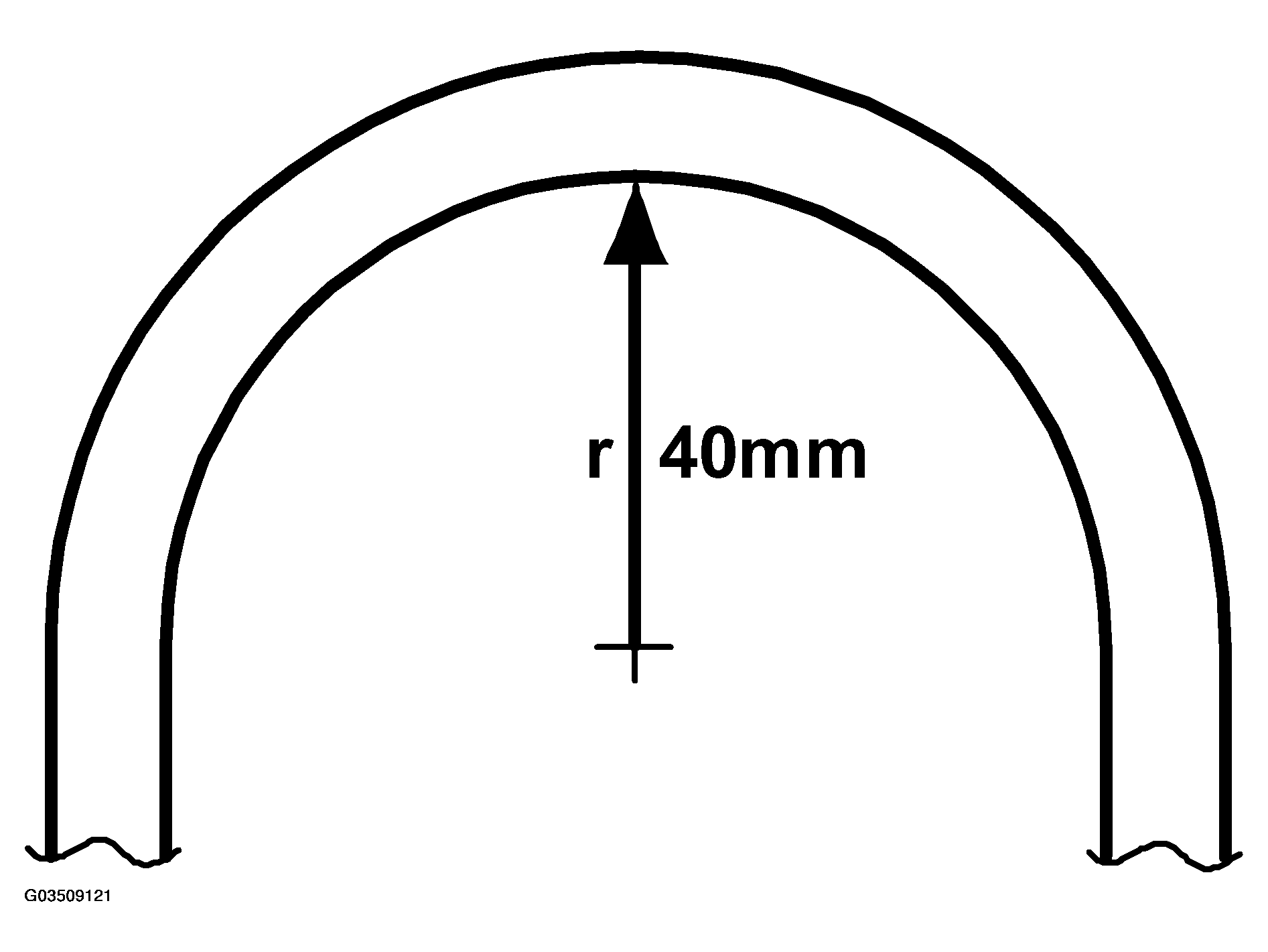

Fig 3: Identifying Hydraulic Hose Bending Radius
G03509121Courtesy of SAAB-SCANIA OF AMERICA, INC.
