Fifth bow latch motor

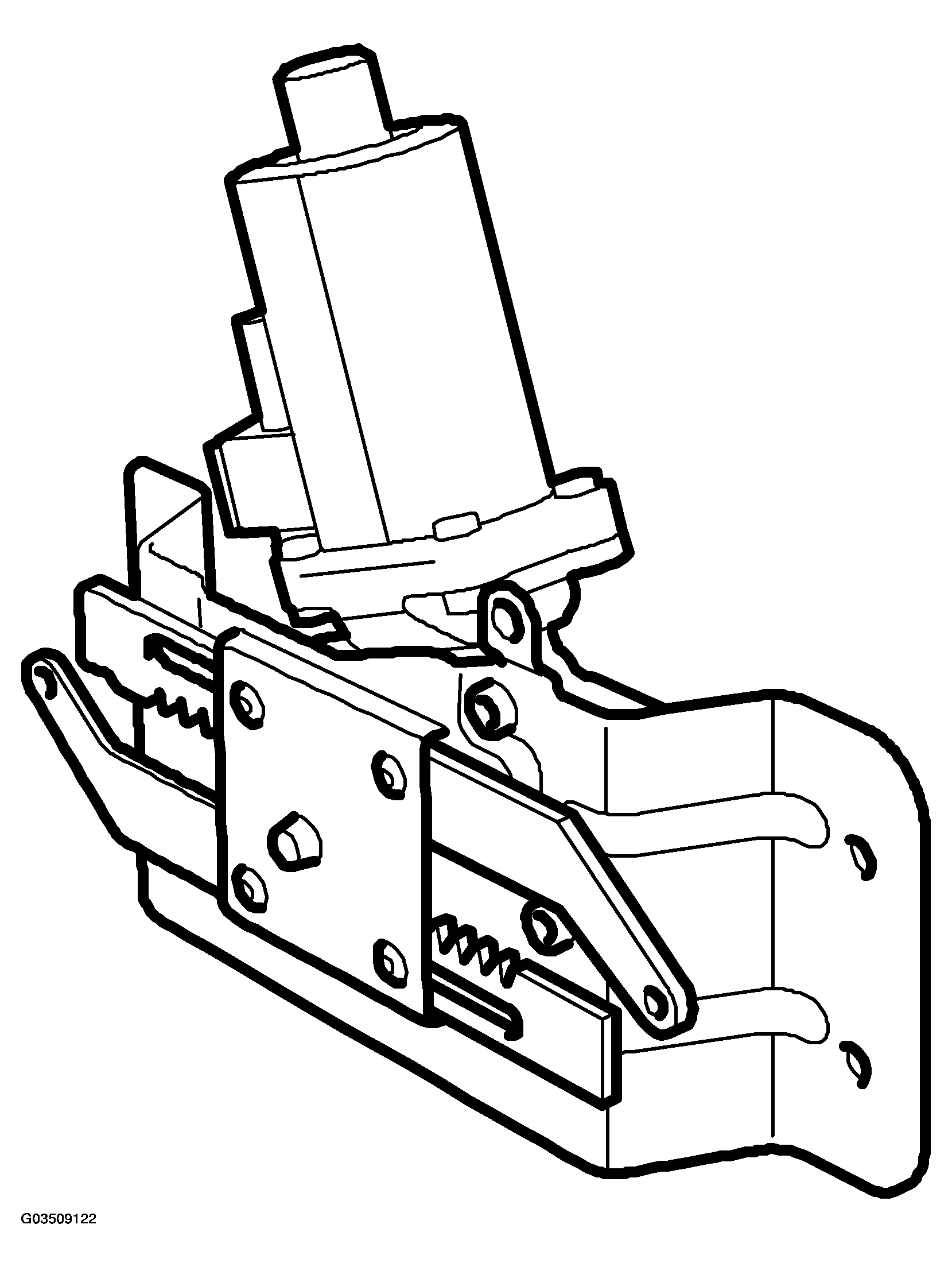

Fig 1: View Of Fifth Bow Latch Motor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA - FIFTH BOW LATCH MOTOR

Power supply	V	12
Max. current consumption at 12 V	A = 16

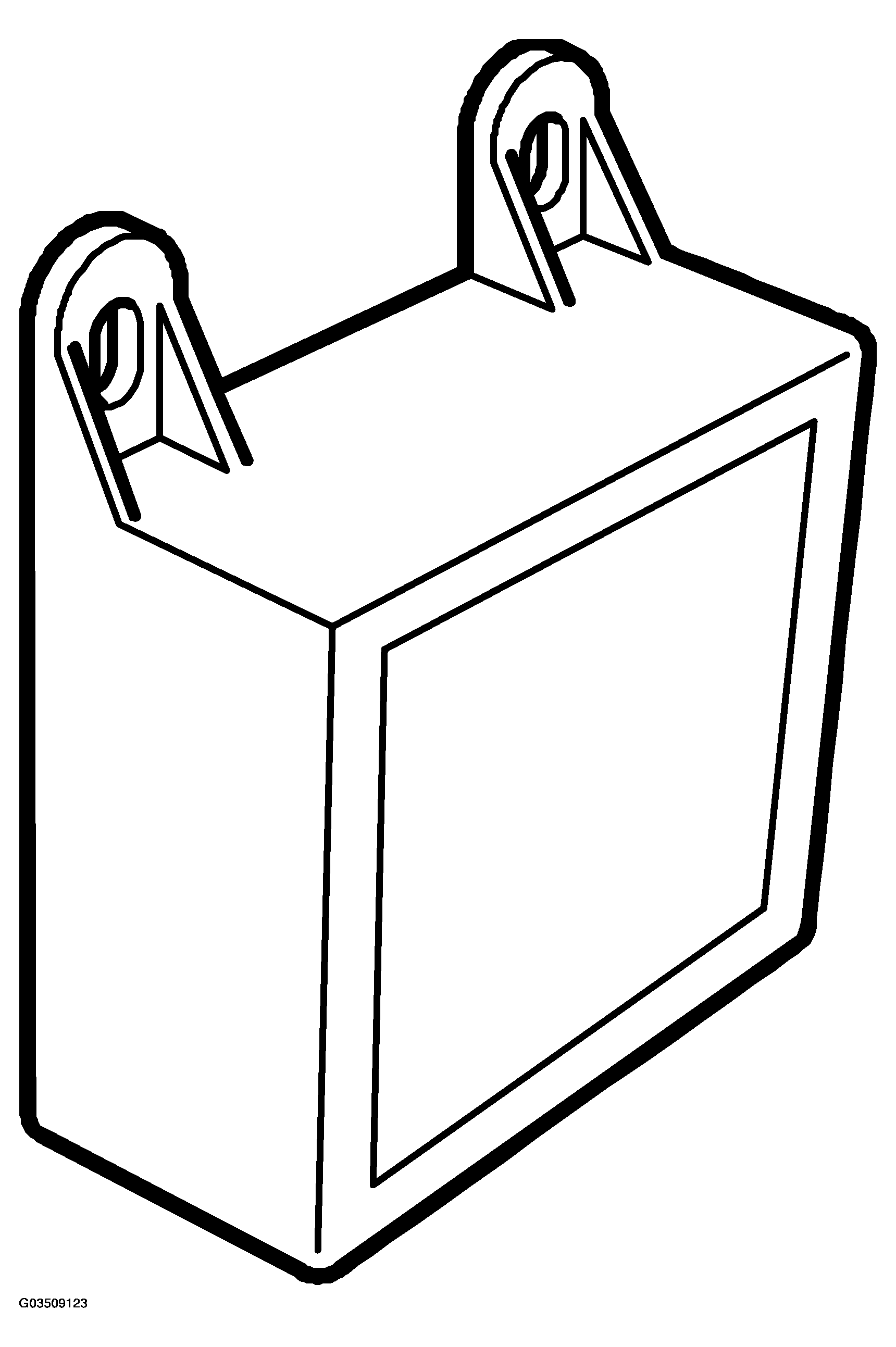

Fig 2: View Of Control Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.
