Fifth bow hydraulic cylinder

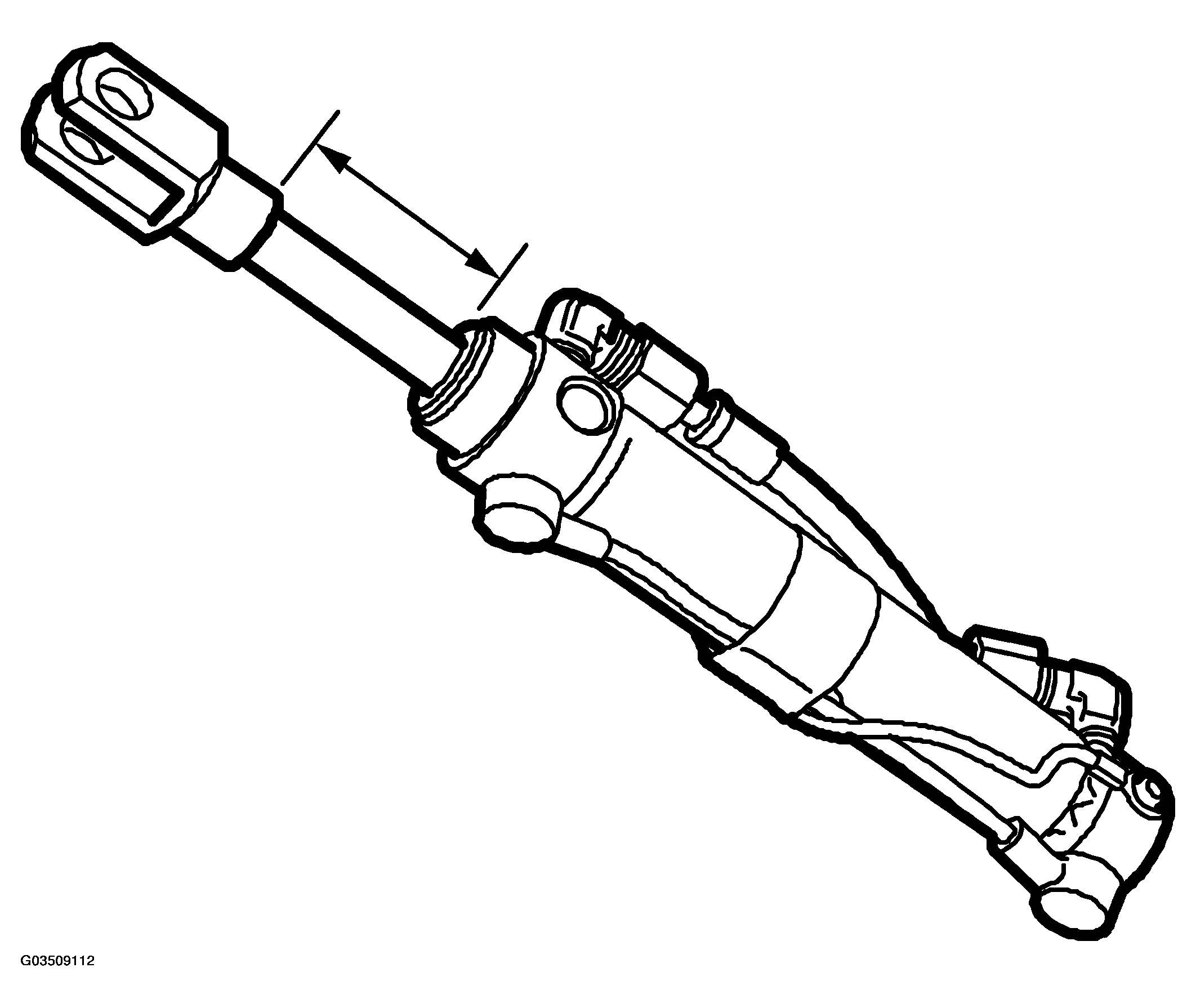

TECHNICAL DATA - FIFTH BOW HYDRAULIC CYLINDER
| Contracted length, fifth bow down (closed) | mm | 3.5 |
| Extended length, fifth bow up (open) | mm | 80.5 |
| Contracted length, fifth bow lowered (closed). End position switch active | mm | 15 |
| Extended length, fifth bow up (open) End position switch active | mm | 72.5 |
| Force when lowering (closing) | N | Min. 3100/ Max. 3500 |
| Force when raising (opening) | N | Min. 4100/ Max. 4700 |
| Switch, upper position, fifth bow completely raised (open) | closed | |
| Switch, lower position, fifth bow completely lowered (closed) | closed |
