Rattling noise from the lid over the rotating cover torsion cables: Procedure

Fit Nitto seal, part no. 48 55 656

  1. Maneuver the soft top so that the soft top cover is open.
  2. Cut the seal into 4 sections.
  3. Insert the seal into the gap between the cover and soft top cover rib.

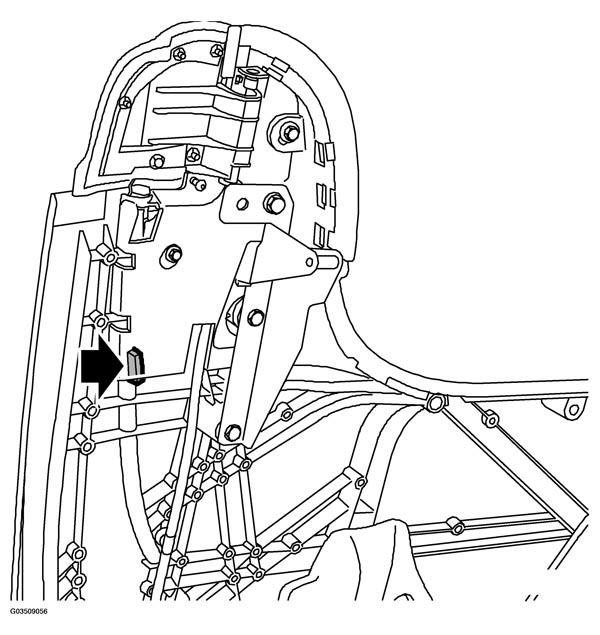

    Fig 1: Inserting Seal Into Gap Between Cover And Soft Top Cover Rib
    G03509056Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Check that the noise no longer occurs.
