Procedure 2

  1. Follow the instructions ADJUSTING THE SOFT TOP  thoroughly and make sure that the dimensions between the special tool and the first bow are correct.
  2. Add shims to the right and left-hand sides if necessary, part no. 48 52 836.

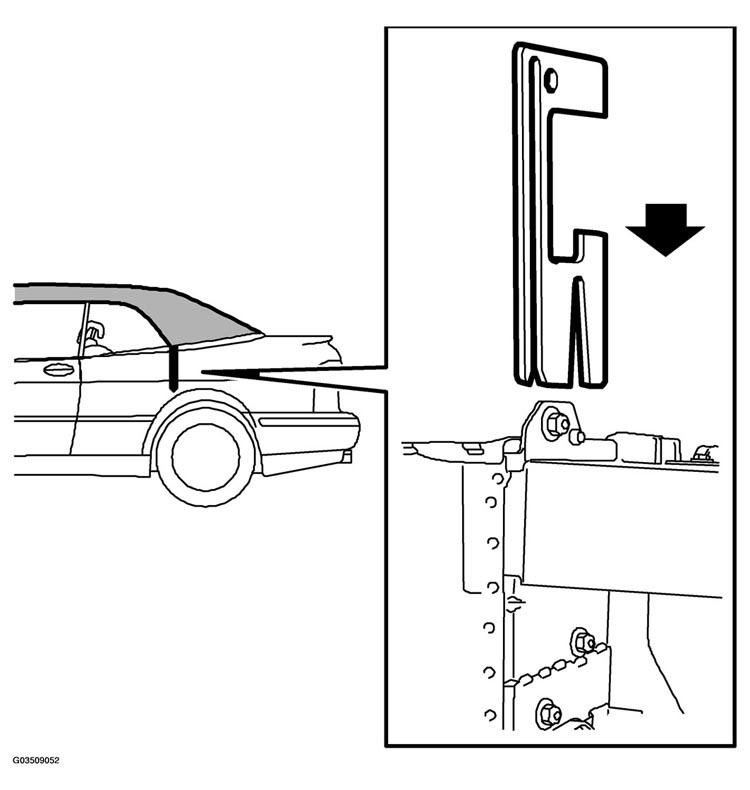

    Fig 1: Installing Shim
    G03509052Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Check that the soft top is not too far from the inner windshield (windscreen) frame.
  4. After adjusting, perform another road test on an uneven surface and make sure the rattling has ceased.
