Rattle from the covering of the soft top cover: Procedure

Fit felt tape, part no. 49 60 555.

  1. Run the soft top so that the soft top cover is in its upright position.
  2. Check where the covering hits against the soft top cover.

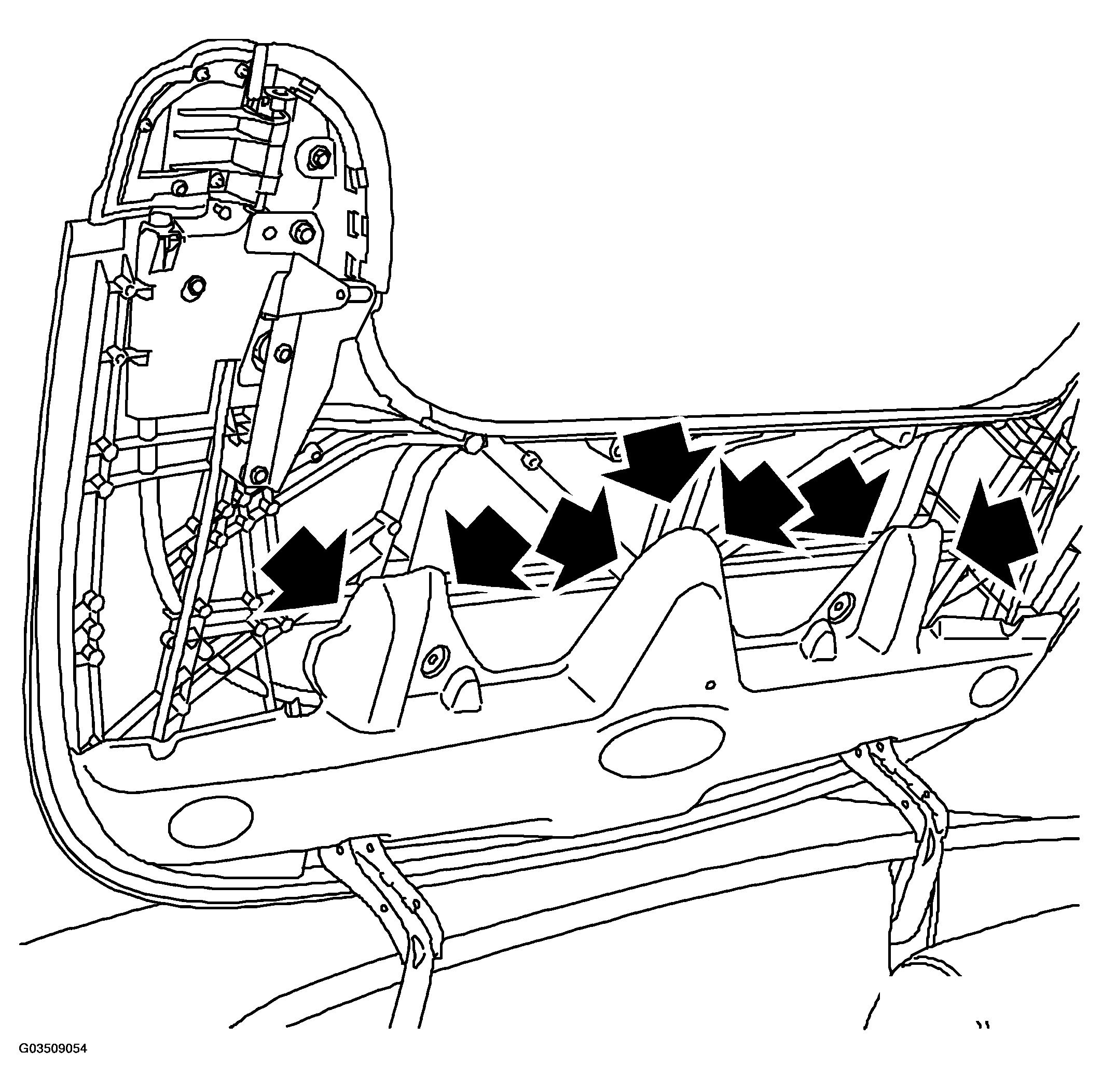

    Fig 1: Inspecting Soft Top Cover Covering Points
    G03509054Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit a few pieces of felt tape on the edges of the covering where the covering hits against the soft top cover ribs.

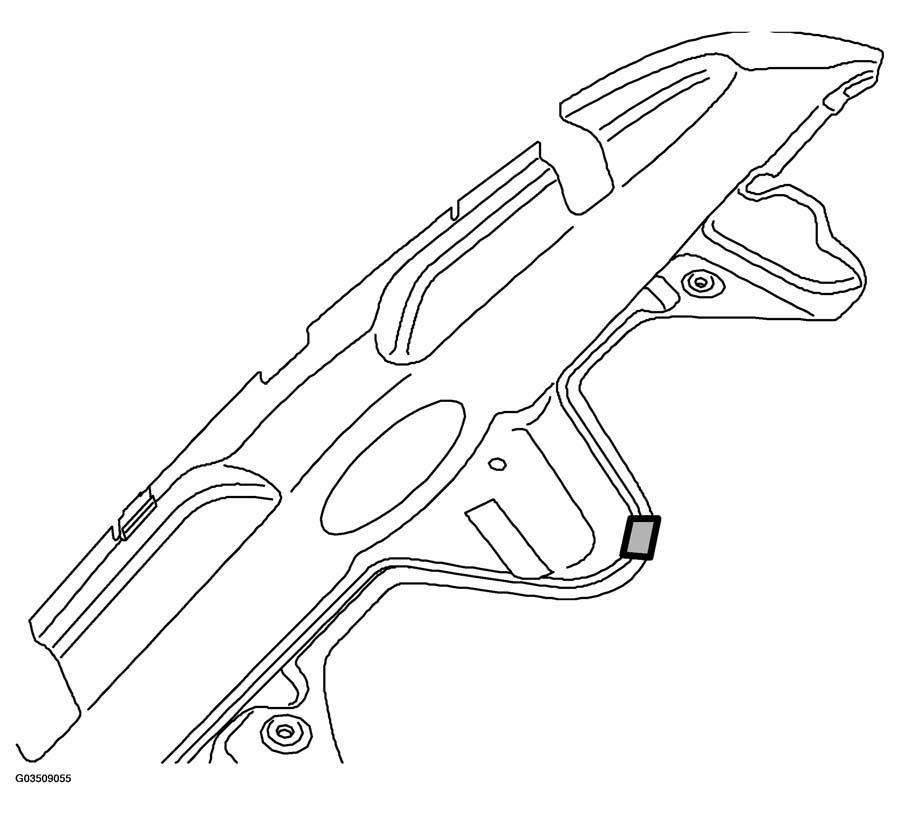

    Fig 2: Fitting Felt Tape On Covering Edges
    G03509055Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Check that the noise is gone.
