Procedure 2

Lubricate the sliding surfaces of the hood cover drive mechanism as follows:

1. Remove Boot trim, CV  on the right.
2. Lubricate the sliding surfaces as shown with 30 20 476 Ball bearing grease  .

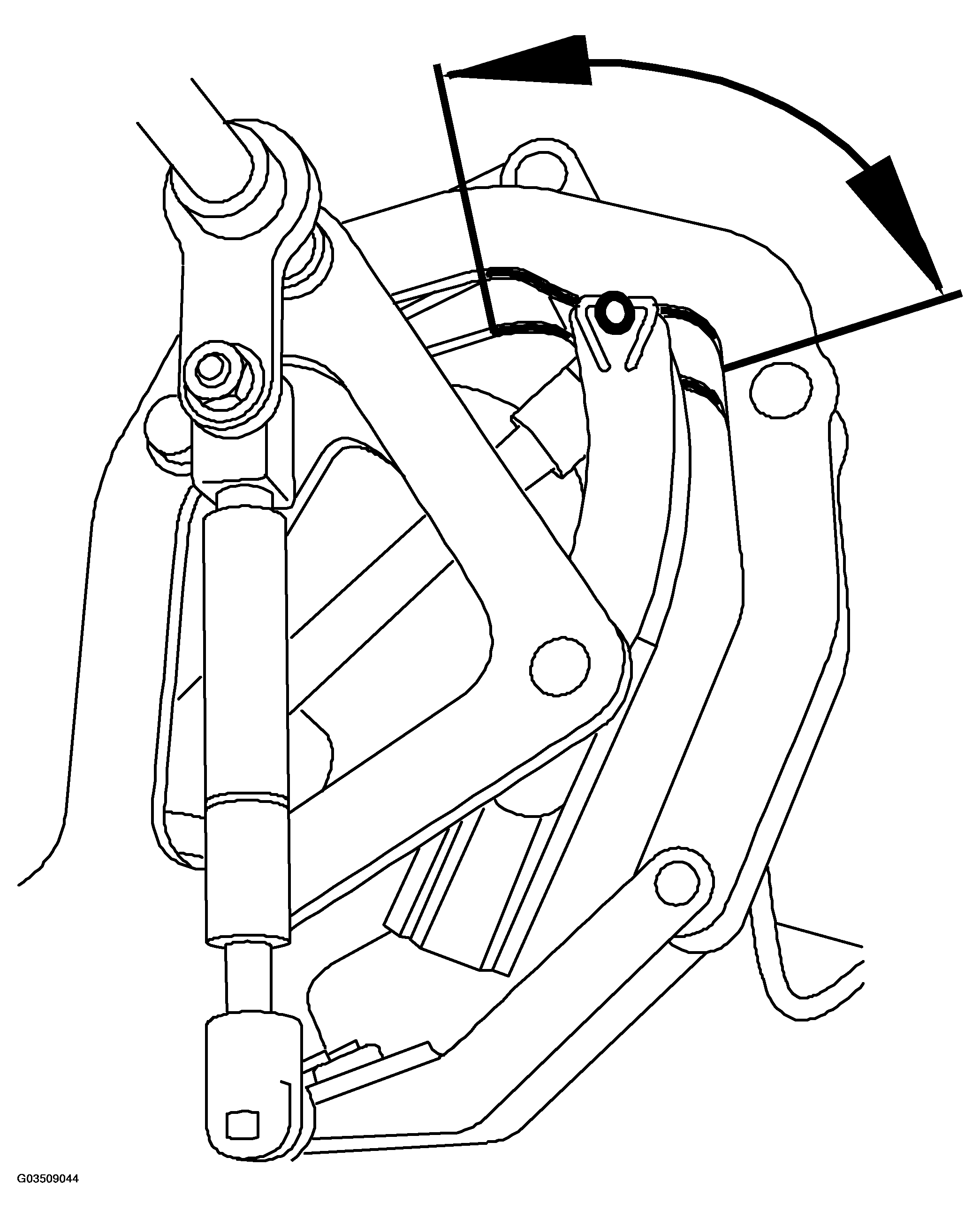

   Fig 1: Identifying Sliding Surface Lubricating Point

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Fit Boot trim, CV  .
