Home >> Saab >> 2001 >> 9-3 Base, 4D Hatchback, Automatic >> Repair and Diagnosis (Single Page) >> Body & Frame >> Sun Roof/T-Top/Convertible Top >> Convertible >> Fault Diagnosis, Symptom >> Rattle from soft top cover operating mechanism >> Procedure 1

Procedure 1

Cause:  Play in universal joint mounting.

Cars concerned:-  37008608

Fit retaining screw, part no. 79 85 963

  1. Open the boot lid.
  2. Loosen the luggage compartment trim on the right-hand side and move it aside slightly.
  3. Fit the retaining screw in one of the threaded holes of the universal joint.

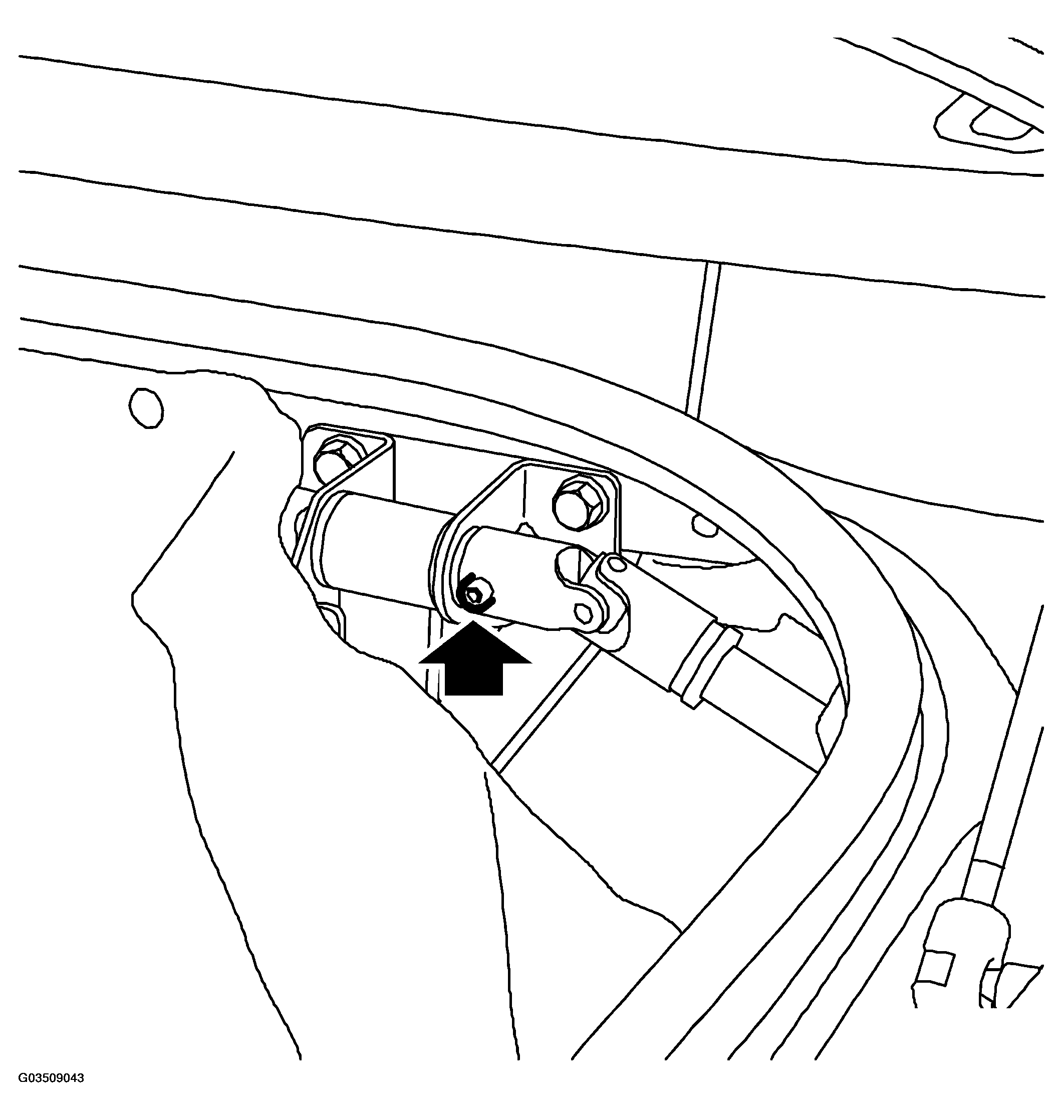

    Fig 1: Fitting Retaining Screw In Universal Joint Threaded Hole
    G03509043Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the luggage compartment trim. Close the boot lid.
  5. Check that the noise is gone.
