Home >> Saab >> 2001 >> 9-3 Base, 4D Hatchback, Automatic >> Repair and Diagnosis (Single Page) >> Body & Frame >> Sun Roof/T-Top/Convertible Top >> Convertible >> Fault Diagnosis, Symptom >> Noise from the swivelling covers on the soft top cover >> Procedure 1

Procedure 1

Fit a U-profile, part no. 75 35 487. use Loctite 406

  1. Maneuver the soft top so that the soft top cover is open.
  2. Apply Loctite 406 to the ribbing on the swivelling covers on the soft top cover.
  3. Fit the U-profile to the ribbing on the swivelling covers on the soft top cover.

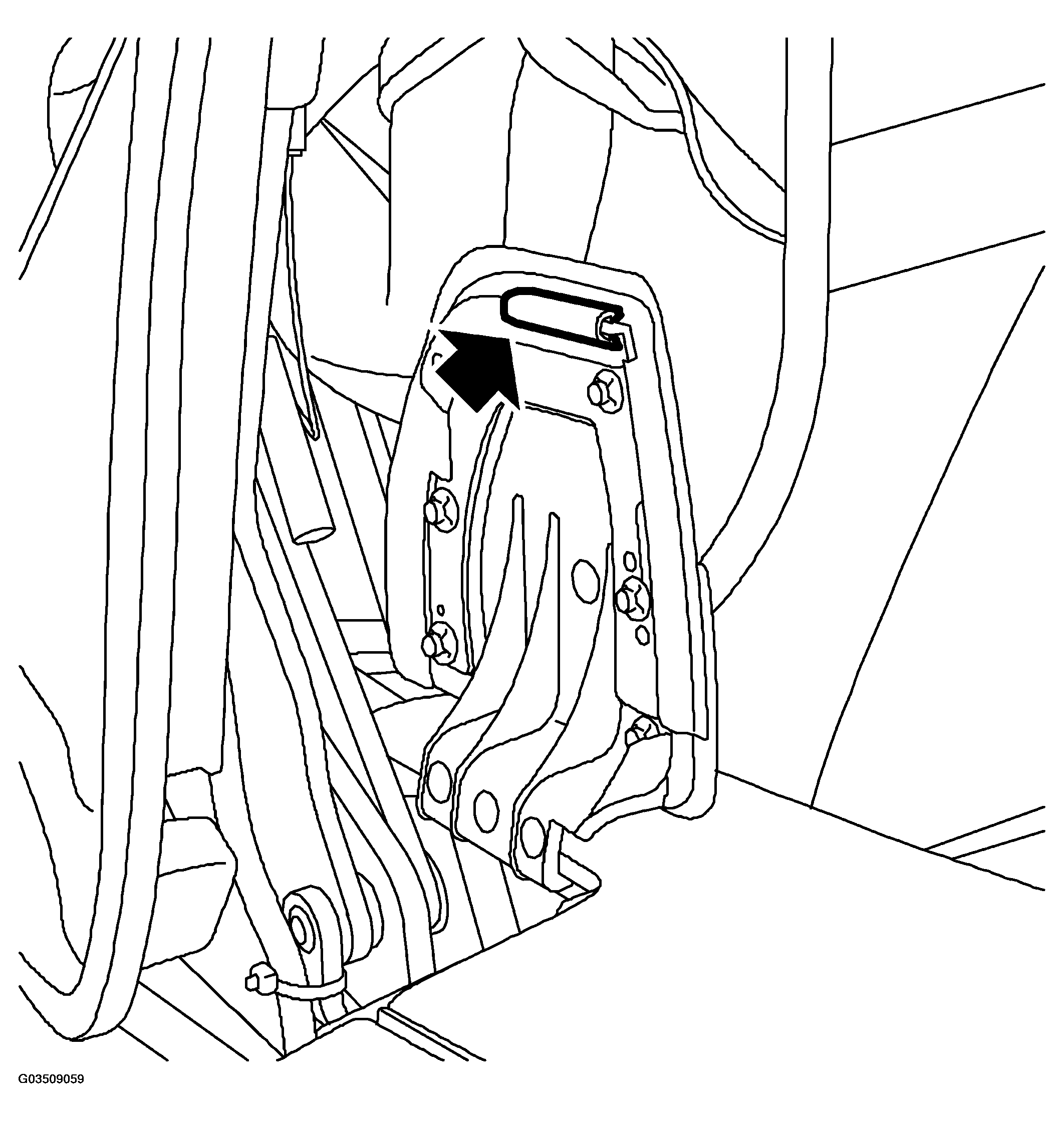

    Fig 1: Fitting U-Profile To Ribbing On Swivelling Covers On Soft Top Cover
    G03509059Courtesy of SAAB-SCANIA OF AMERICA, INC.
