Procedure 2

Use felt tape, part no. 49 60 555

  1. Thoroughly clean the vinyl surface which comes in contact with the soft top cover.
  2. Position 7 pieces of felt tape on the vinyl surface; keep the same distance between the pieces.

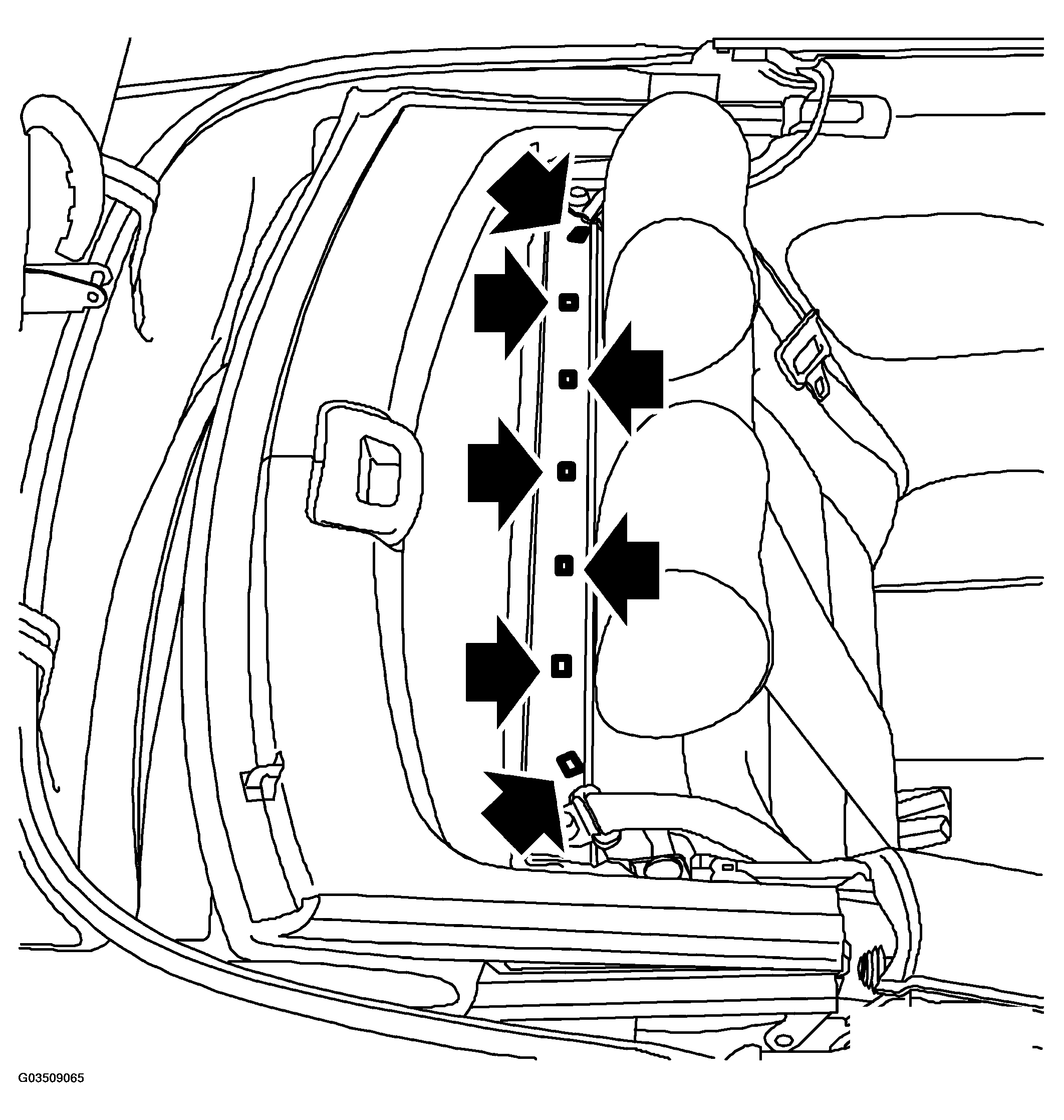

    Fig 1: Fitting Pieces Of Felt Tape On Vinyl Surface
    G03509065Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fasten the pieces. Check the alignment of the felt tape with the soft top cover.
  4. Check that the noise no longer occurs.
