Noise from side trim: Procedure

  1. Remove Rear side trim, CV
  2. Grind the metal bracket approx. 2 mm as shown in the illustration.

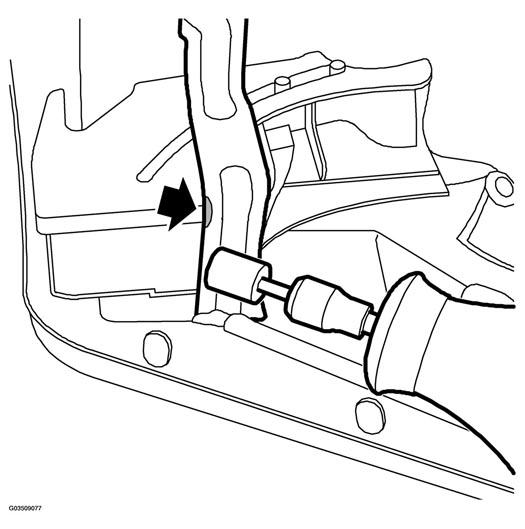

    Fig 1: Identifying Metal Bracket Grinding Dimension
    G03509077Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the rear side trim, CV
