Procedure 6

Symptom:  Creaking noise

Cause:  Clip marking at A-pillar flange with uneven edges

Cars concerned:  - 27013325

1. Remove Dashboard
2. Grind the surfaces requiring welding as shown in the illustration.

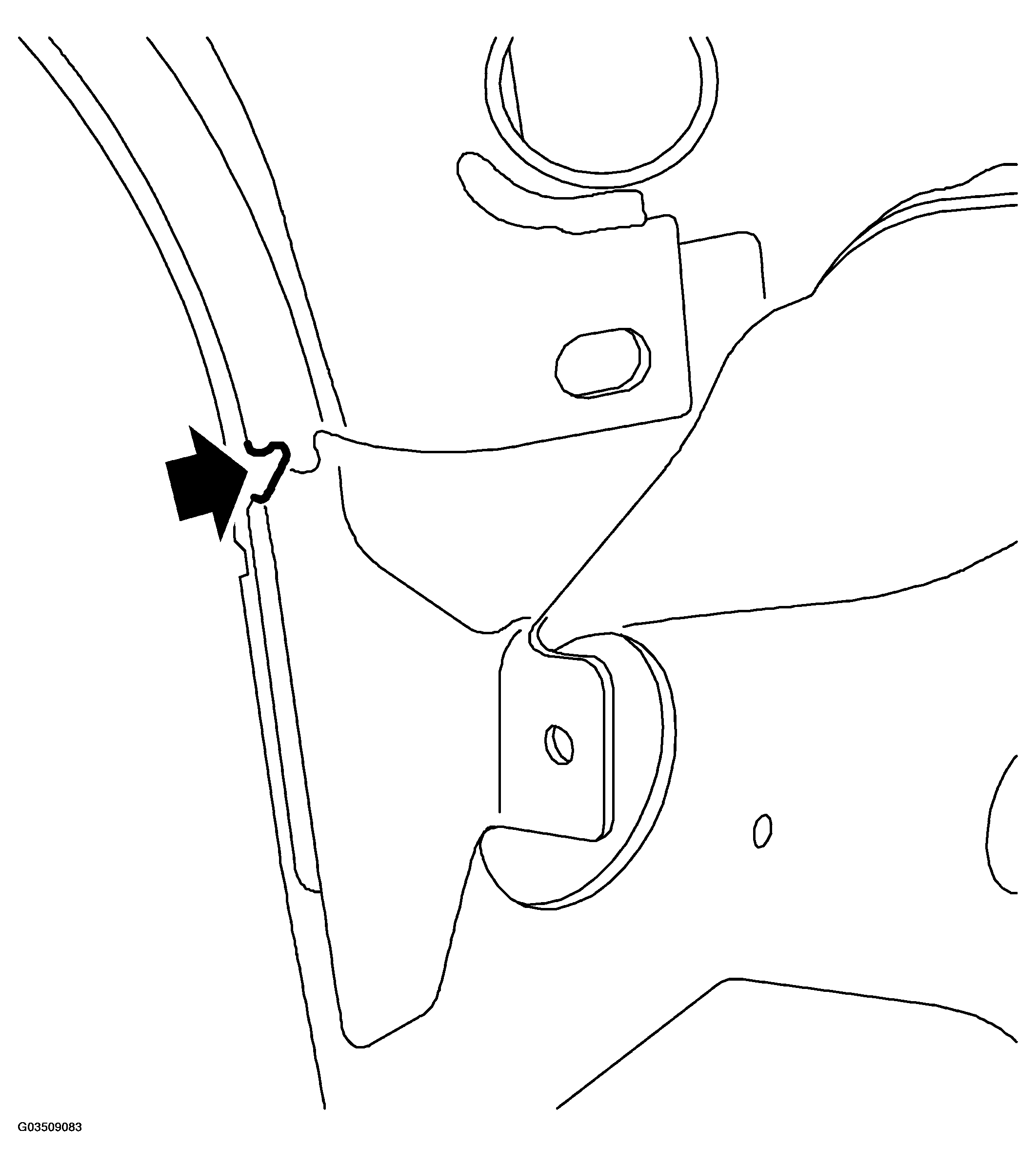

   Fig 1: Identifying Welding Surface Grinding Point

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Seam weld as shown in the illustration.
4. Grind the weld.
5. Apply primer to all ground surfaces.
6. Apply anti-corrosion agent after painting. Use Terotex HV 400.
7. Fit the dashboard  .
