Procedure 3

Symptom:  Creaking noise from the right-hand side

Cause:  Inner metal bracket can come into contact with the inner reinforcement.

Cars affected:  X7020086-

1. Remove the door.
2. Remove the lower hinge bolt.
3. Construct a tool according to the illustration.

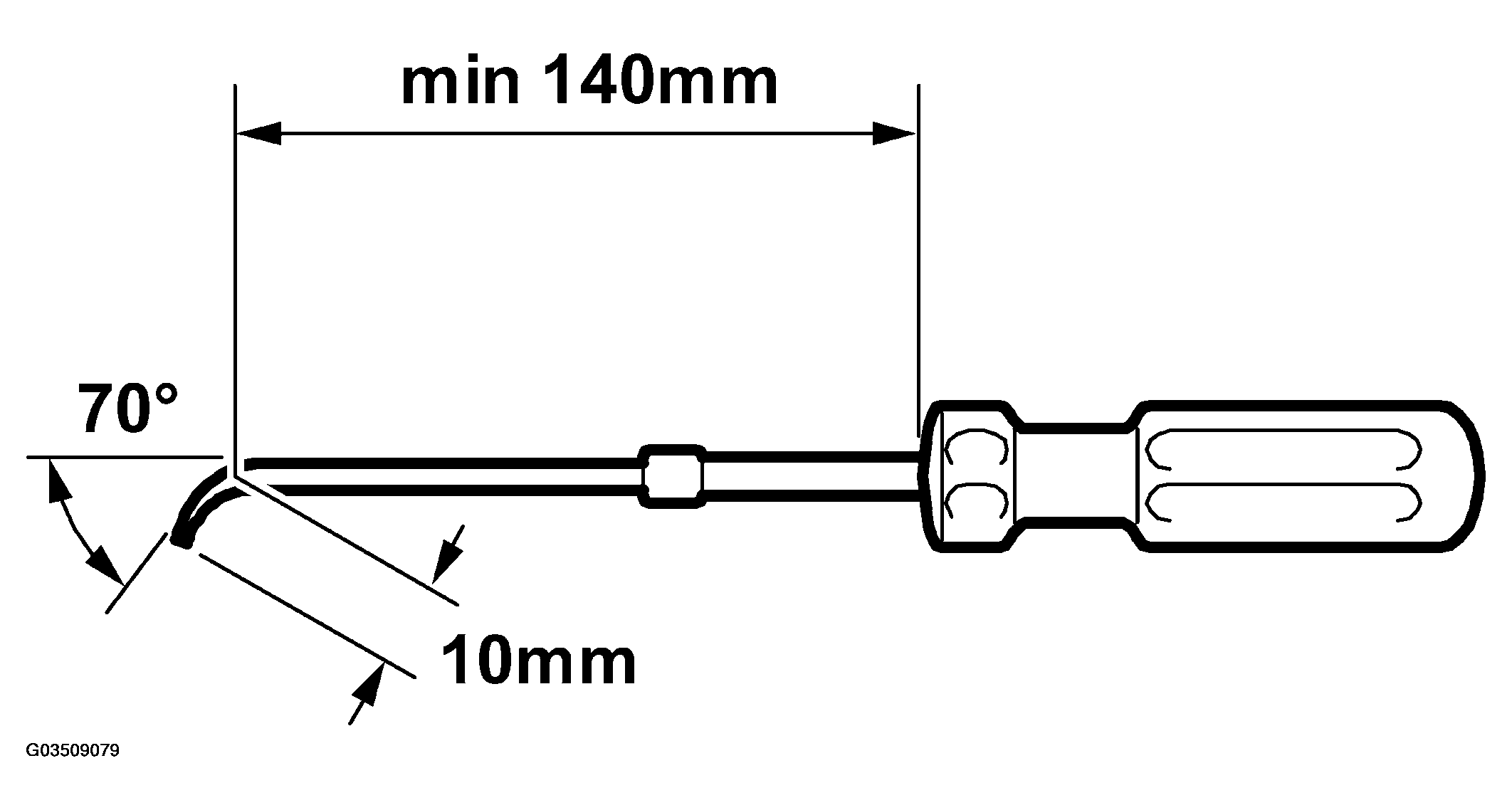

   Fig 1: Identifying Tools Assembling Dimensions

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
4. Insert the tool through the bolt hole.

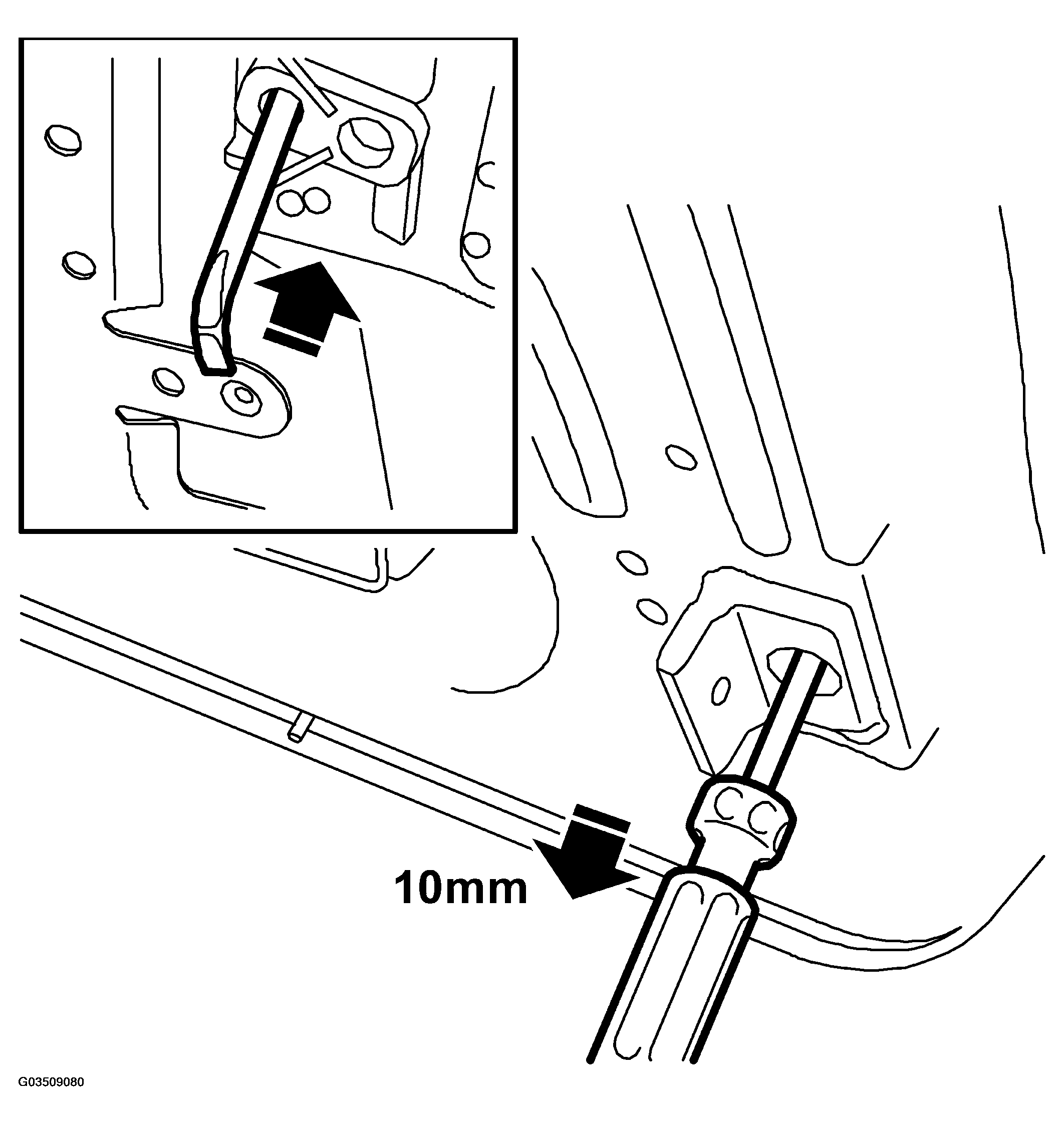

   Fig 2: Inserting Tool Into Bolt Hole

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
5. Hook onto the metal bracket and pull it out approx. 10 mm.
6. Fit the hinge bolt.
7. Fit the door.
