DTC B2031: Tonneau Latched Right Switch - Function Incorrect: Notes

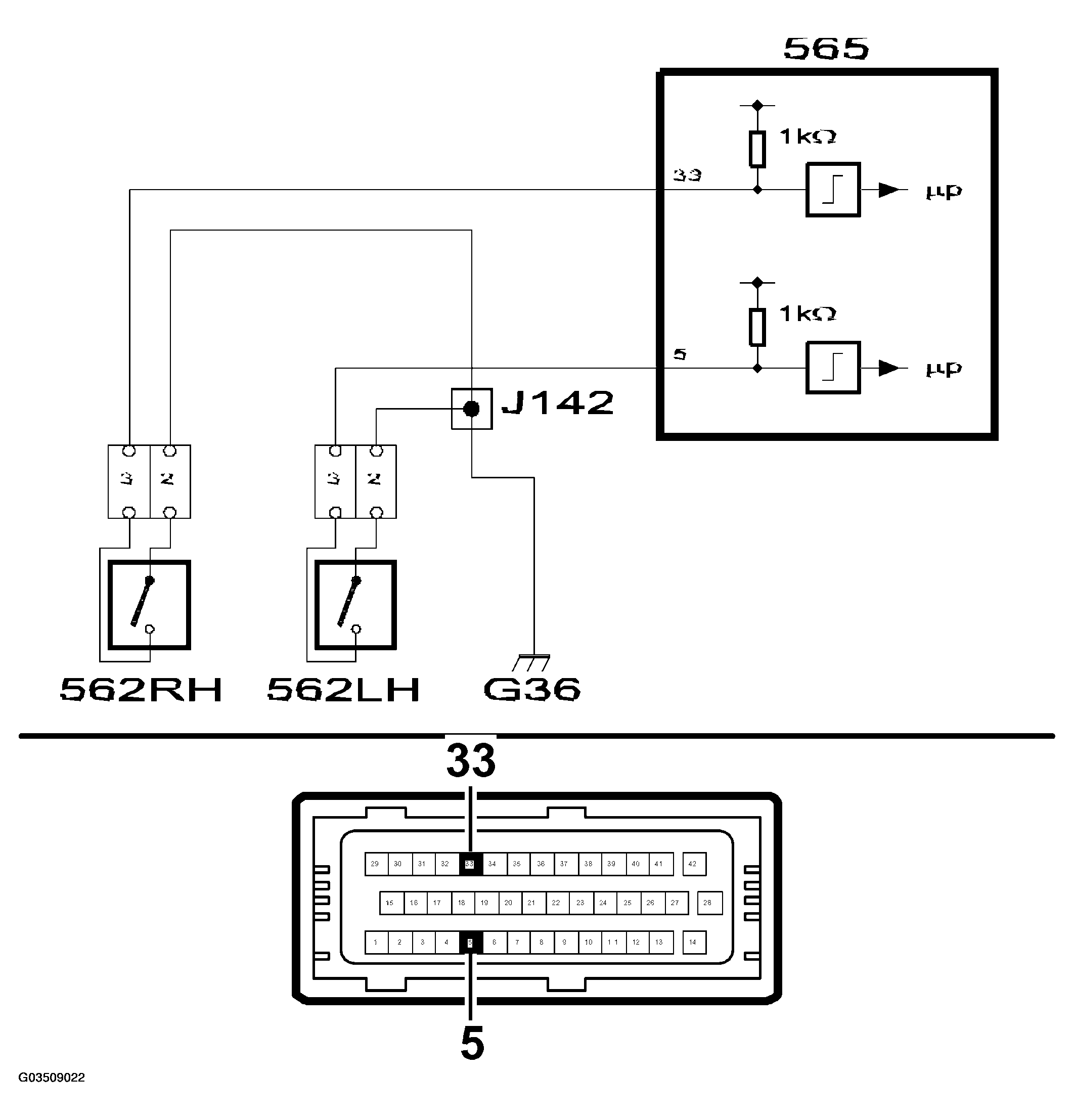

Fig 1: Tonneau Latched Right Switch - Circuit Diagram (Function Incorrect)

G03509022

Courtesy of SAAB-SCANIA OF AMERICA, INC.
