DTC B2026: Tonneau Latched Left Switch - Function Incorrect: Notes

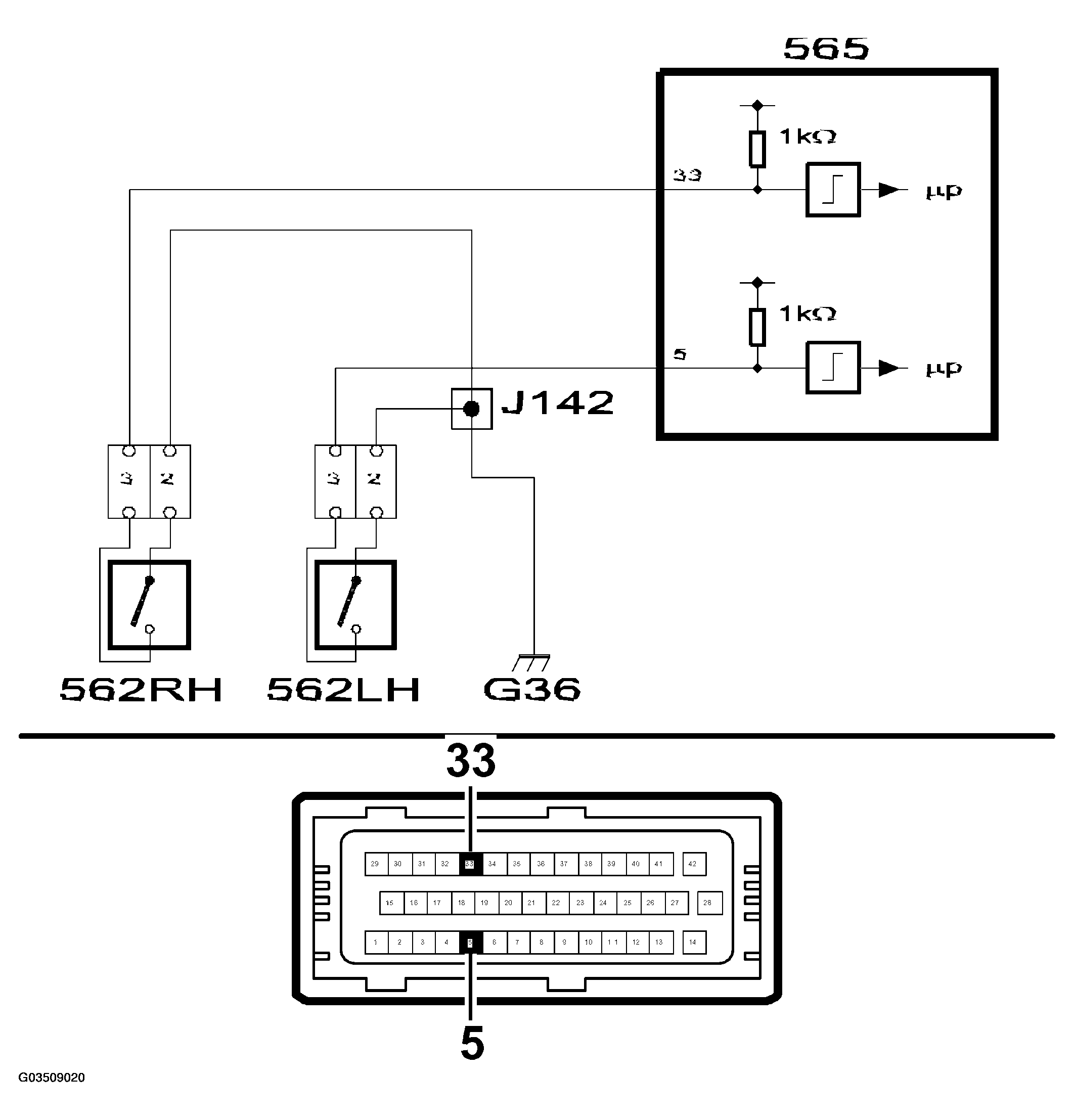

Fig 1: Tonneau Latched Left Switch - Circuit Diagram (Function Incorrect)

G03509020

Courtesy of SAAB-SCANIA OF AMERICA, INC.
