DTC B2021: #5 Bow Intermediate Switch - Function Incorrect: Notes

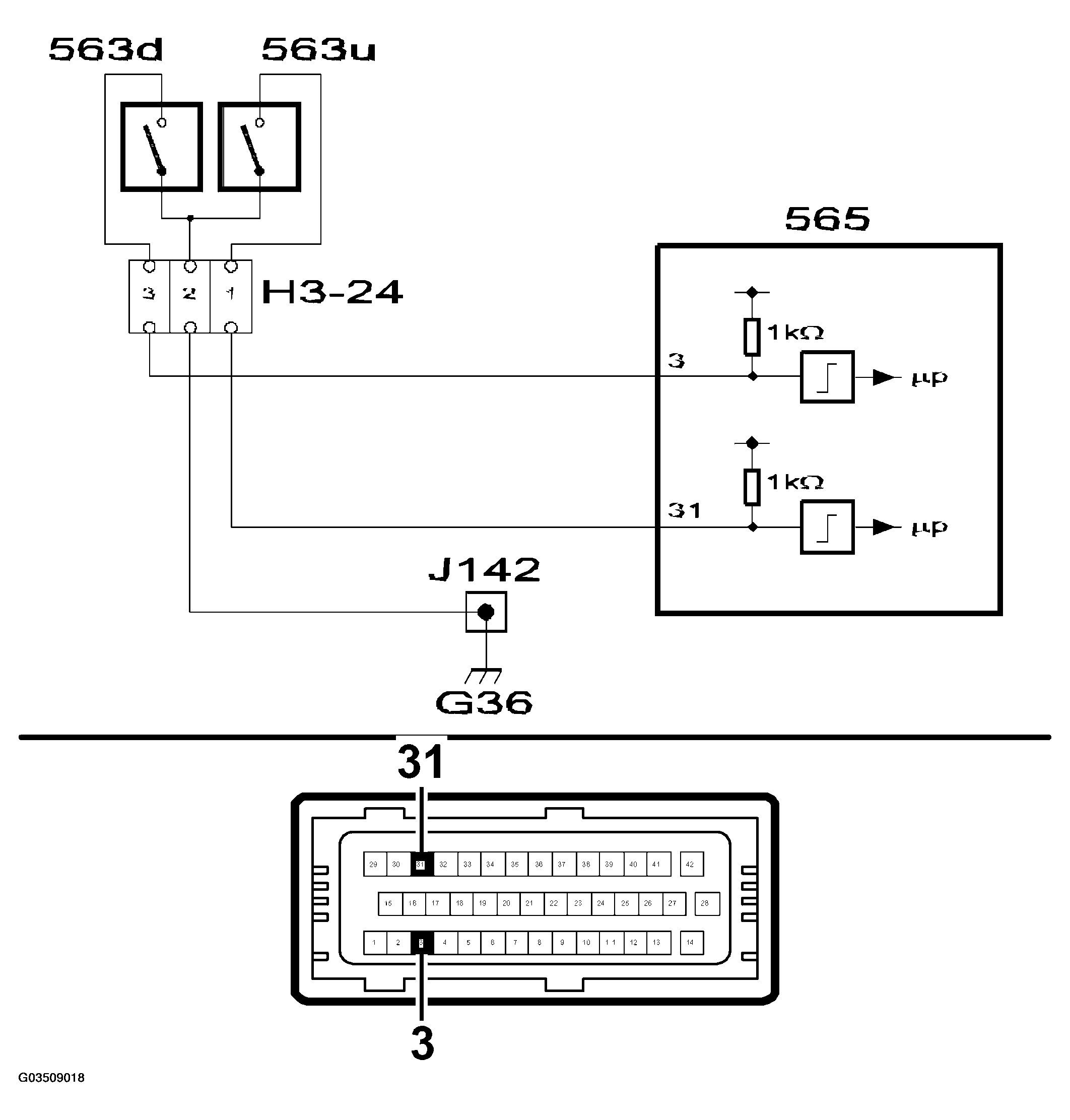

Fig 1: No. 5 Bow Intermediate Switch - Circuit Diagram (Function Incorrect)

G03509018

Courtesy of SAAB-SCANIA OF AMERICA, INC.
