DTC B1821: Soft Top Valve 3, #5 bow UP - No response: Notes

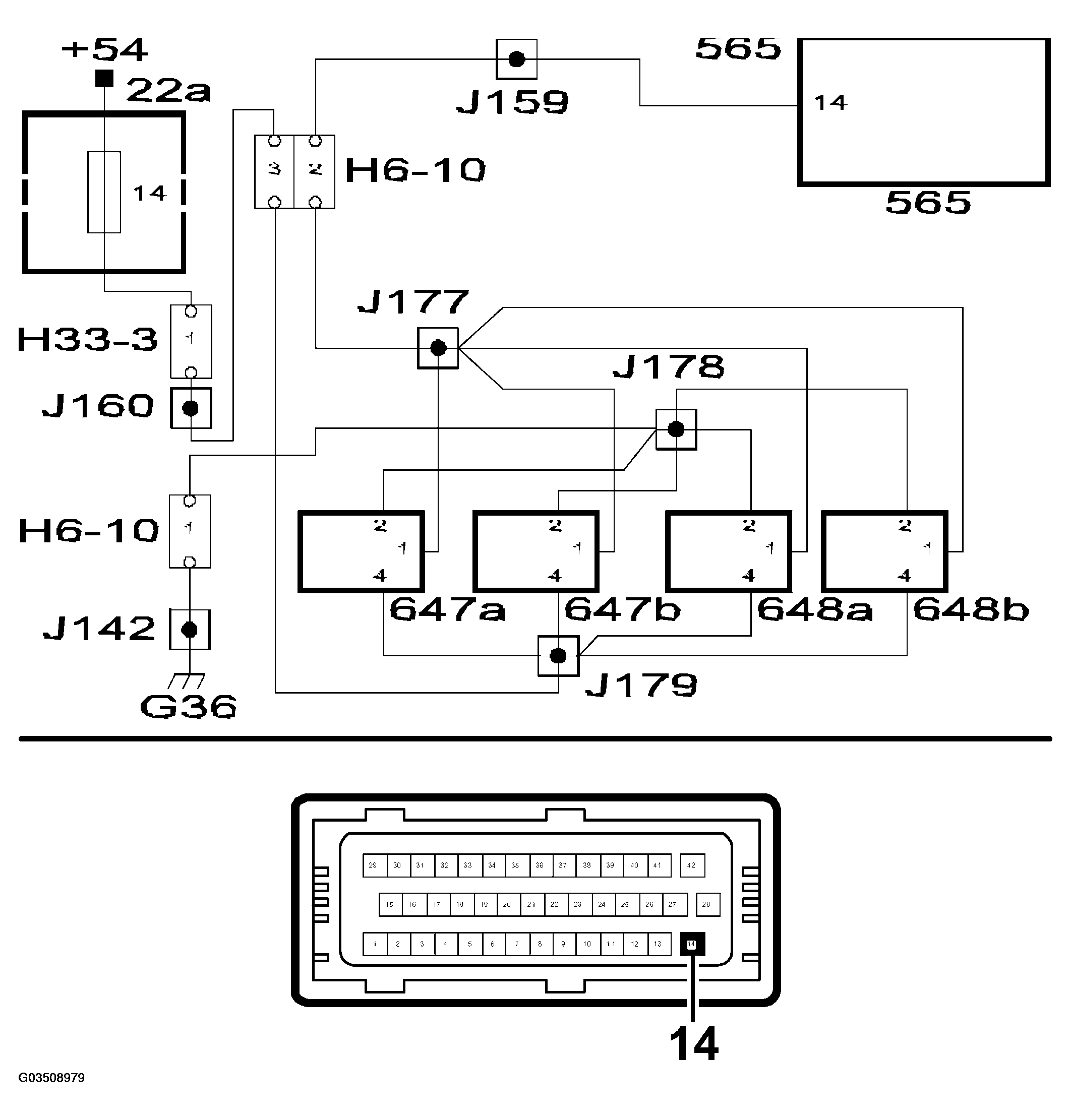

Fig 1: Soft Top Valve 3, #5 Bow Up - Circuit Diagram (No Response)

G03508979

Courtesy of SAAB-SCANIA OF AMERICA, INC.
