Home >> Saab >> 2001 >> 9-3 Base, 4D Hatchback, Automatic >> Repair and Diagnosis (Single Page) >> Body & Frame >> Sun Roof/T-Top/Convertible Top >> Convertible >> Fault Diagnosis, Fault Codes >> DTC B1811: Soft Top Valve 1, #5 bow DOWN - No Response >> Notes

DTC B1811: Soft Top Valve 1, #5 bow DOWN - No Response: Notes

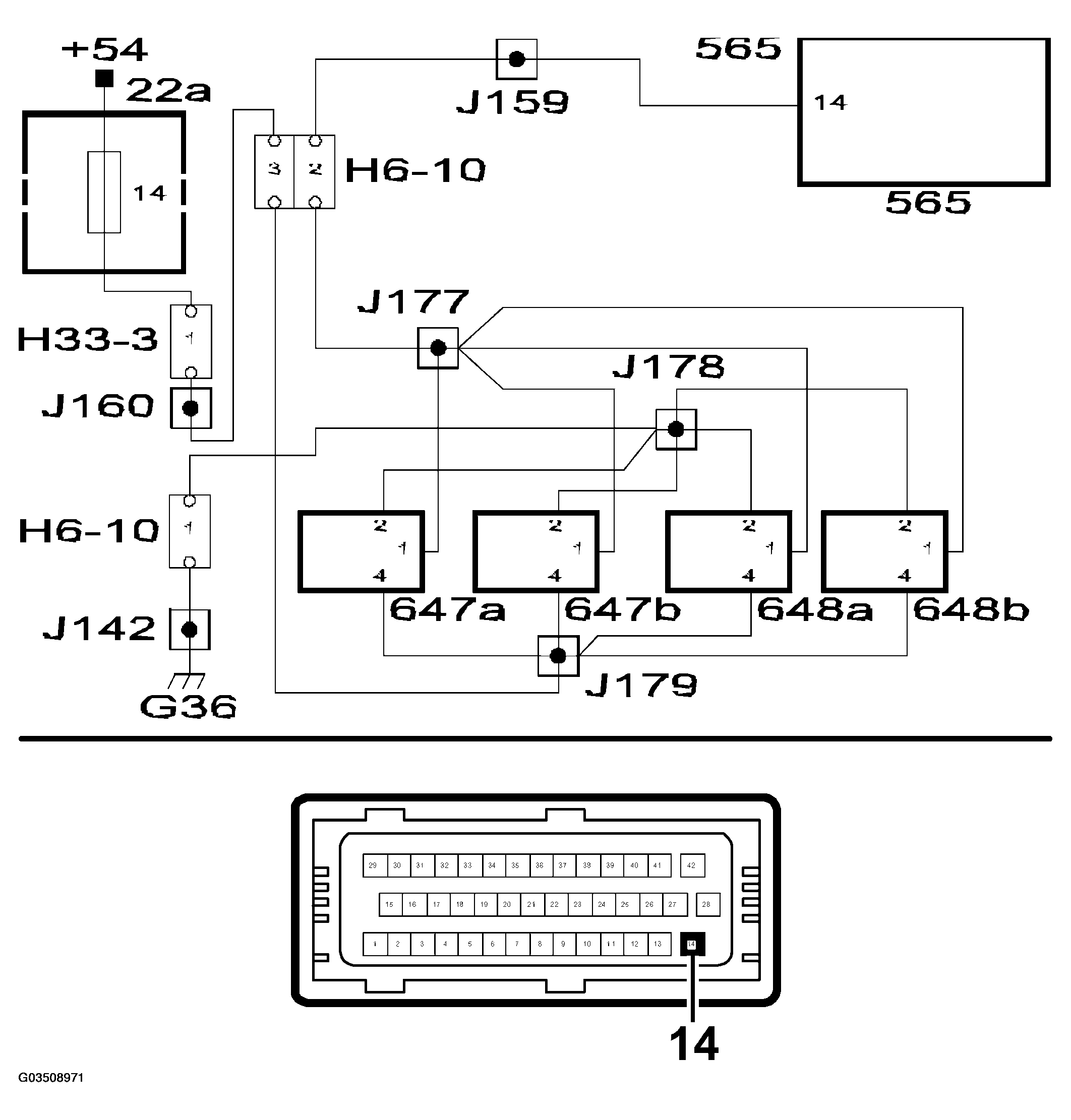

Fig 1: Soft Top Valve 1, #5 Bow Down - Circuit Diagram (No Response)

G03508971

Courtesy of SAAB-SCANIA OF AMERICA, INC.
