Assembling soft top cover, headlining and rear window

NOTE: Replace or touch up the paint the windscreen frame if it is damaged.
  1. Place the back window against the outer roof frame. Refit the spring. Place it on the loose frame and press the inner roof against the rear window seal.
  2. Fix the frame, inner roof and outer roof at their center markings. Refit the connector for the rear window heating.
    NOTE: If only the inner roof was removed and the clip moved sideways, there is no need to perform the entire method below.
    Instead place the new inner roof against the window frame and guide the inner roof edge below the inner frame. Press the clip back against the window frame.
    If the inner roof is to be fitted to a new outer roof, proceed in the same way.

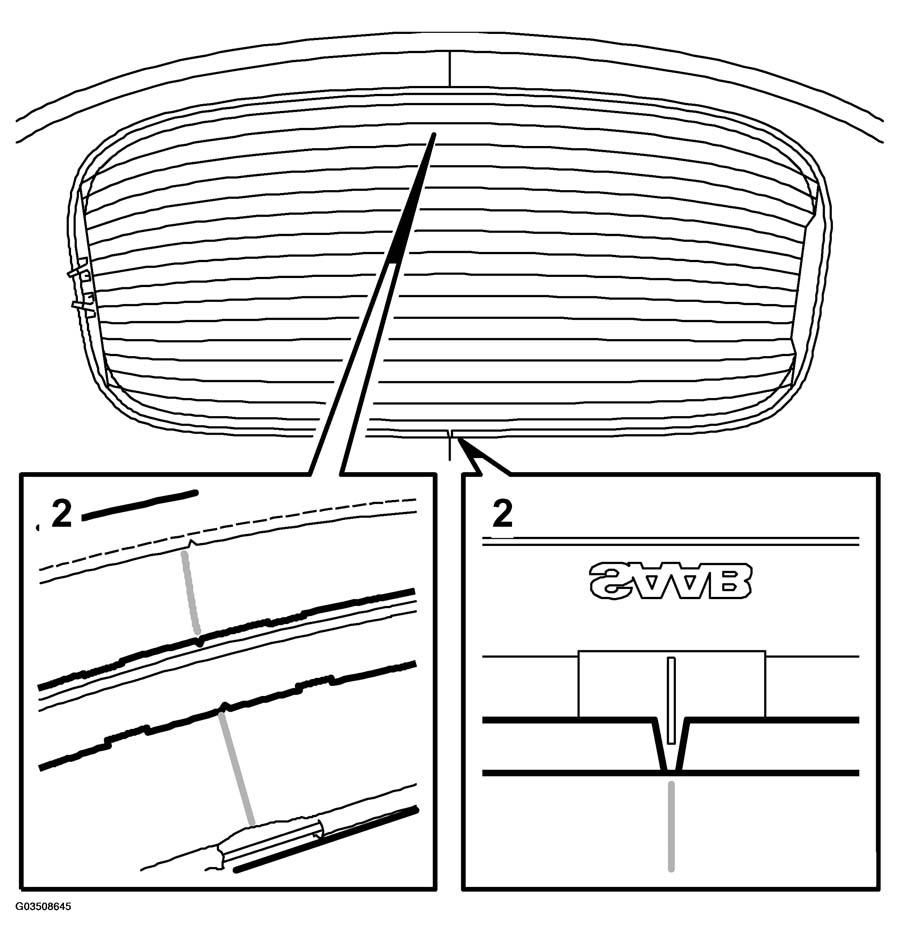

    Fig 1: Illustration For Step 2
    G03508645Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit a clip on each side of the markings. Use special tool pliers (16) 30 12 598 to open the clips. Then fit the clip on the frame.
    WARNING: Use safety glasses since the clips can release from the pliers.
  4. Fold back the headlining and fixate it against the marking at the front edge. Fit a clip on each side of the marking.
  5. Then fit clips in the same manner on the sides of the frame.
  6. Fit the remaining clips around the windscreen frame.

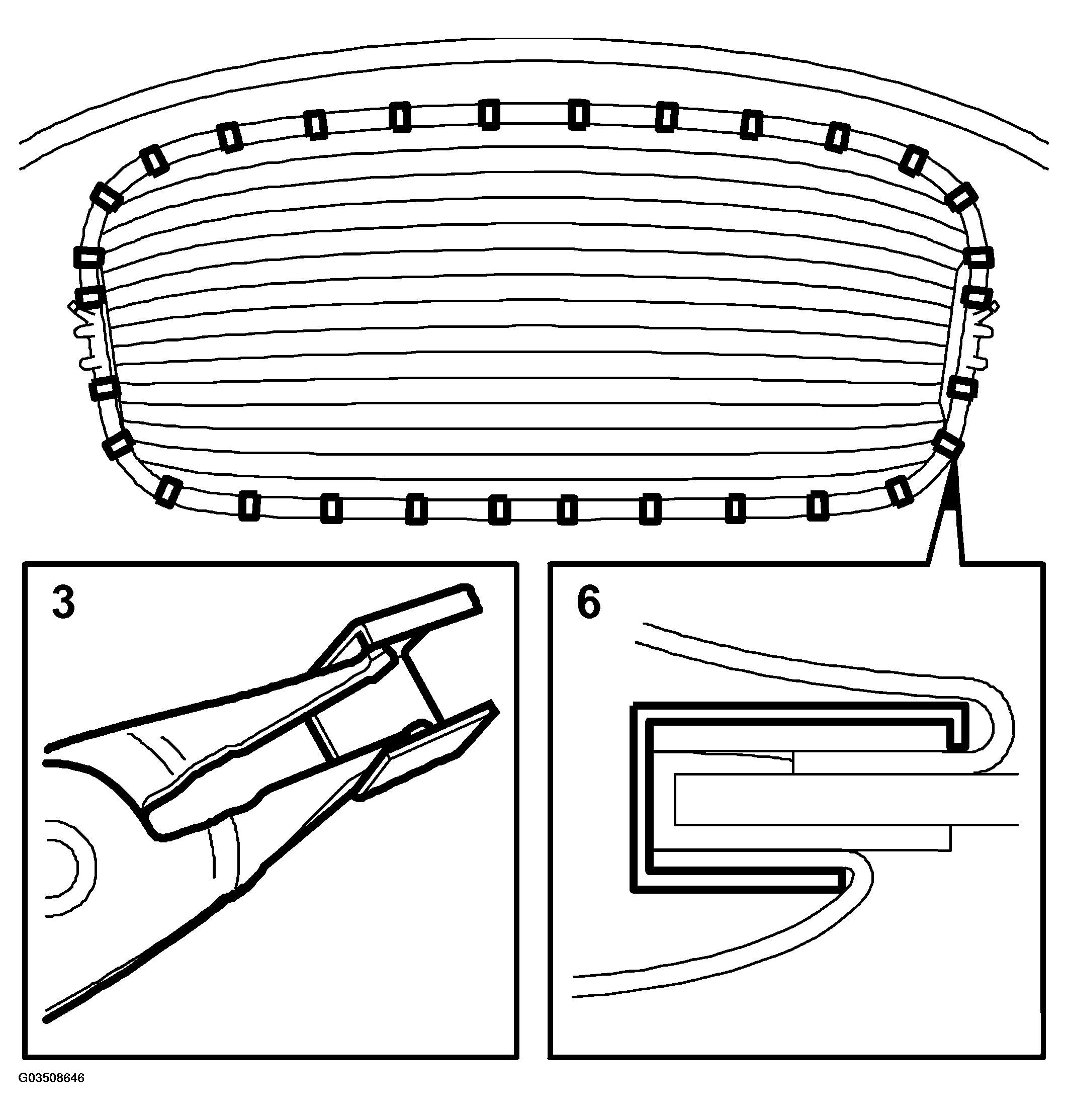

    7. Fig 2: Illustration For Steps 3 & 6
    G03508646Courtesy of SAAB-SCANIA OF AMERICA, INC.
