Soft top cover foil seal: Fitting

Remove old sealant from the retainer channel.
Fetch Teroson Terodicht sealant, black (T242), part no. (16) 30 15 781.

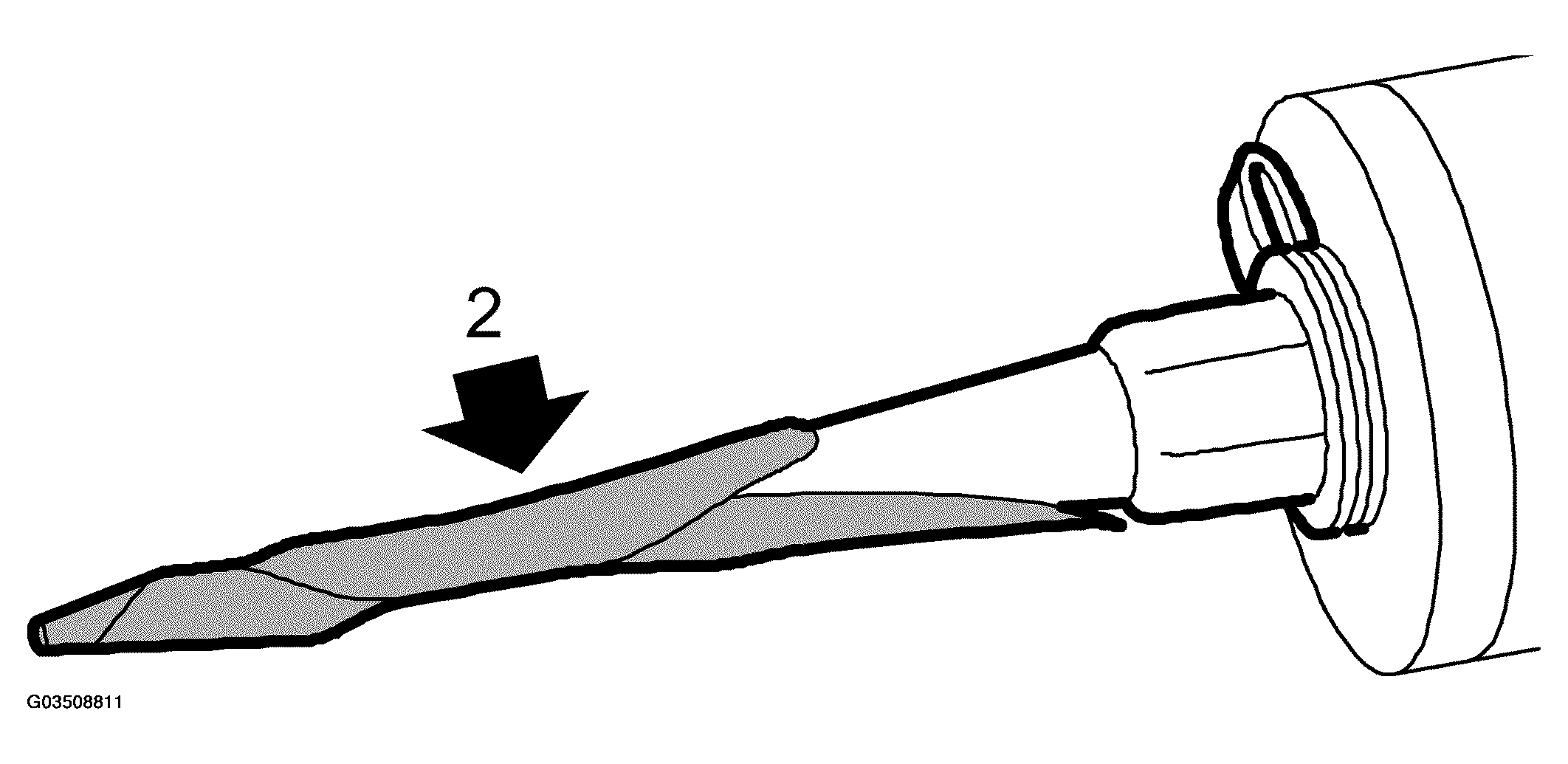

Make the opening of the nozzle smaller with adhesive tape so that it is easier to reach the bottom of the channel.

Fig 1: Illustration For Step 2

Courtesy of SAAB-SCANIA OF AMERICA, INC.

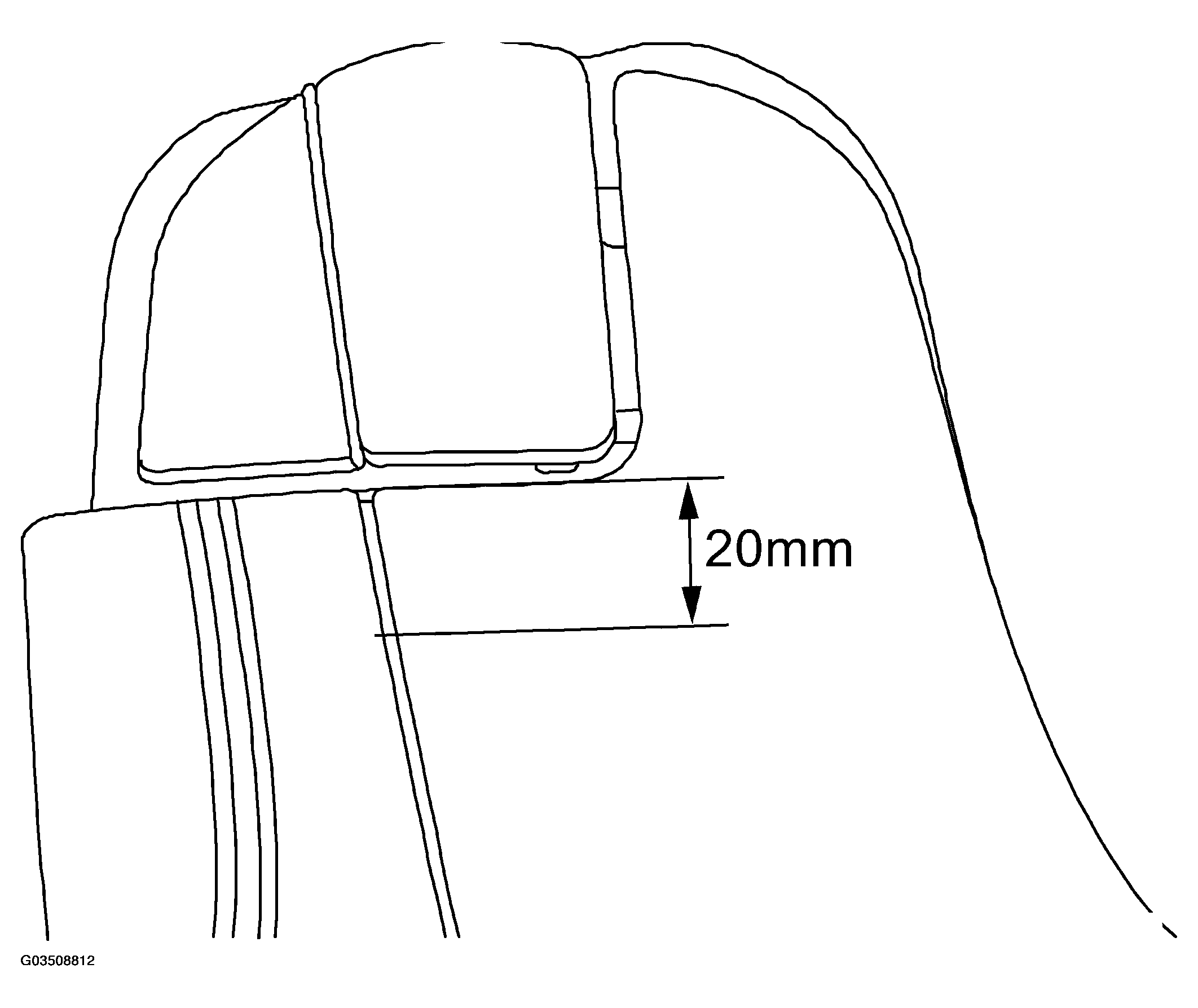

Apply sealant in the bottom of the channel. Start applying the sealant 20 mm from the channel opening and stop 20 mm from the end of the channel.

Fig 2: Identifying Sealant Dimensions
Courtesy of SAAB-SCANIA OF AMERICA, INC.

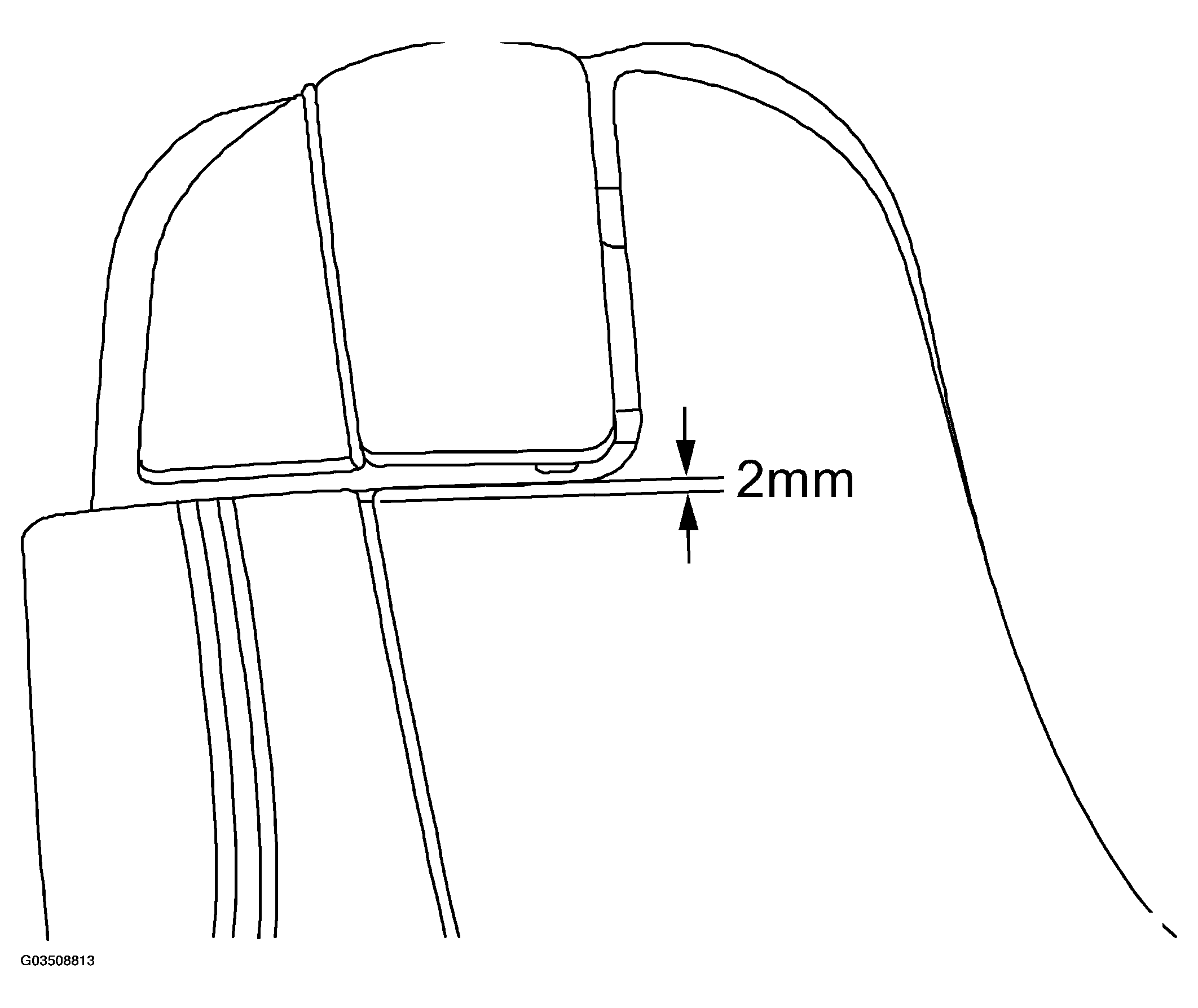

Fit the new seal. Start and finish 2 mm from the channel opening.

Fig 3: Identifying Sealant Dimensions
Courtesy of SAAB-SCANIA OF AMERICA, INC.
