Replacing suspension hook in soft top storage: Fitting

  1. Fit the new hook.
    IMPORTANT: The strap should have the same length as the strap with the other hook.
  2. Fold the strap as shown and make holes with an awl through three layers of fabric.
  3. Fit the washer and pop rivet the strap.

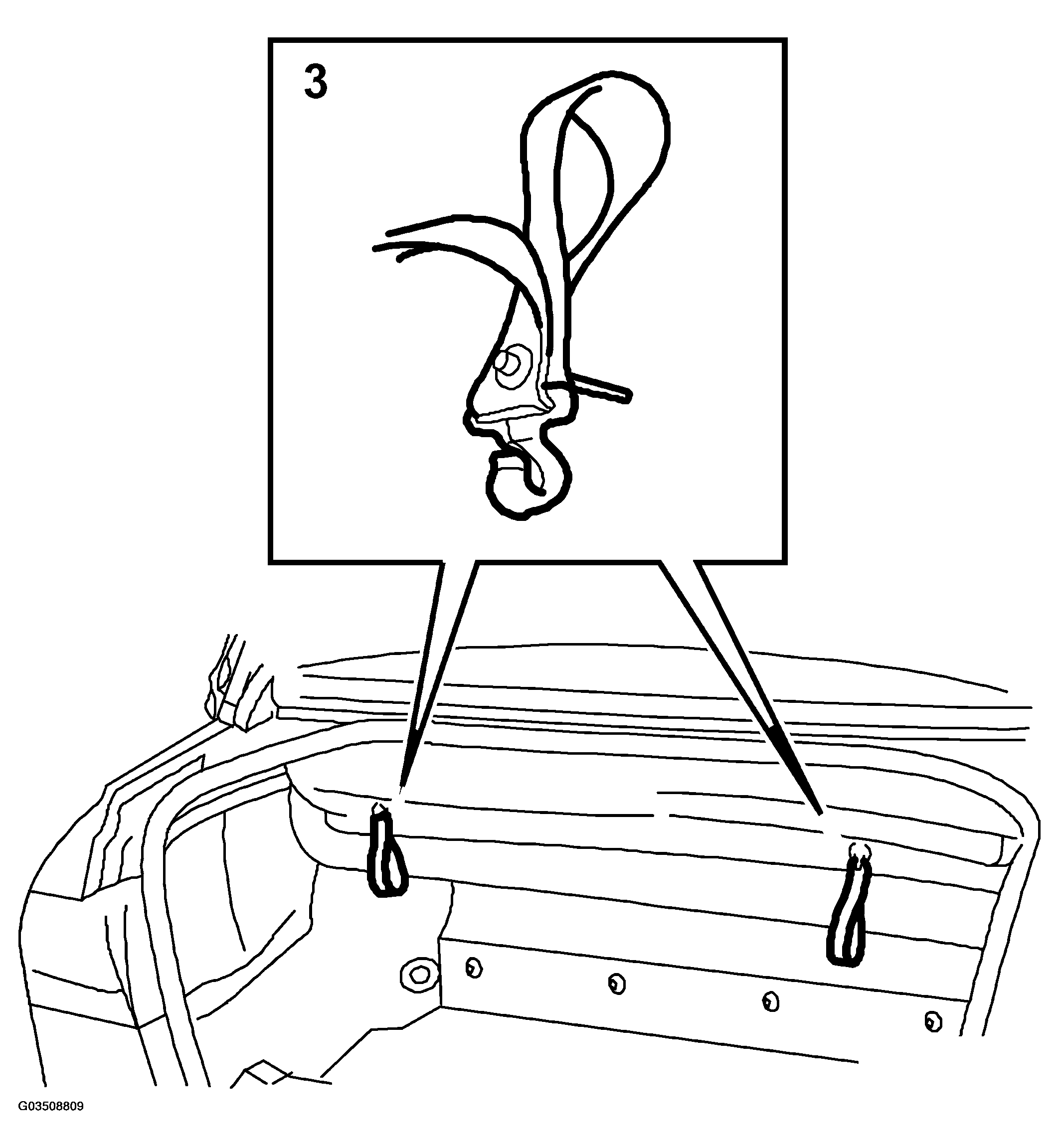

    4. Fig 1: Illustration For Step 3
    G03508809Courtesy of SAAB-SCANIA OF AMERICA, INC.
