B. Soft top edge

The soft top side edge in relation to the door window and the rear side window is adjusted with a bolt in the hinge between the front rail and middle rail.

1. Operate the soft top with the ROOF button so that it is half raised with the soft top cover pointing straight up. Fit the soft top support, special tool (16) 82 93 144 so that the soft top does not fall down when the hydraulic pressure is released. Door windows and side windows must be lowered.
2. Turn in the adjusting screw in the first rail.

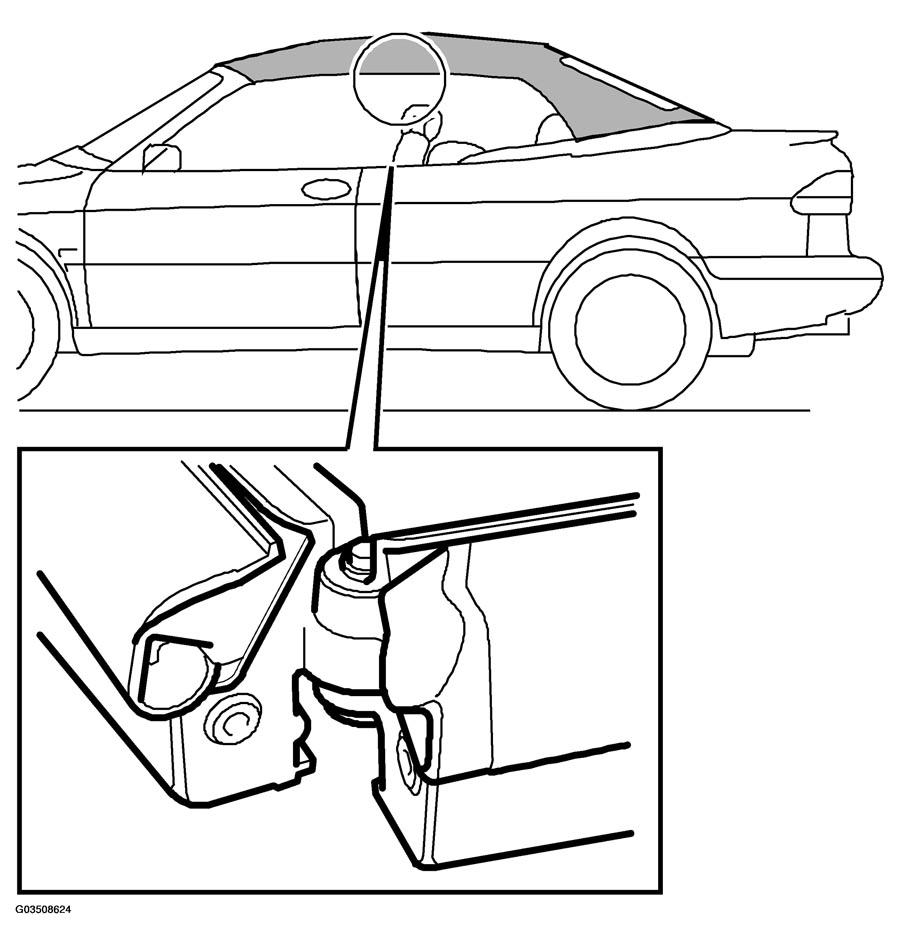

   Fig 1: Turning Adjusting Screw

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Turn out the adjusting screw so that it just touches the stop.
4. Close the soft top completely and lock it to the windscreen frame.
5. Check the distance between the adjusting screw and the stop with a piece of paper. It must not be possible to insert the paper between the screw and the stop
6. Check the soft top edge at the door window and rear side window on both sides. When correctly adjusted, there must be no angle between the front rail and the middle rail. Both rails must form a continuous line that runs along the door window and the rear side window.
   IMPORTANT: Make sure that both sides are alike. Otherwise the soft top may be pulled at an angle when locked to the windscreen frame.
7. Connect the diagnostics tool, erase any diagnostic trouble codes.
